Control Module: Locations

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Audi.

AI Repair Guides






Control modules in rear part of vehicle

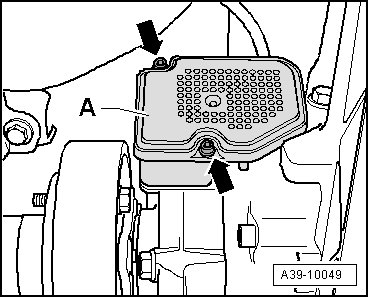

All-Wheel Drive Control Module -J492-









Component Location:


On rear axle differential, front left

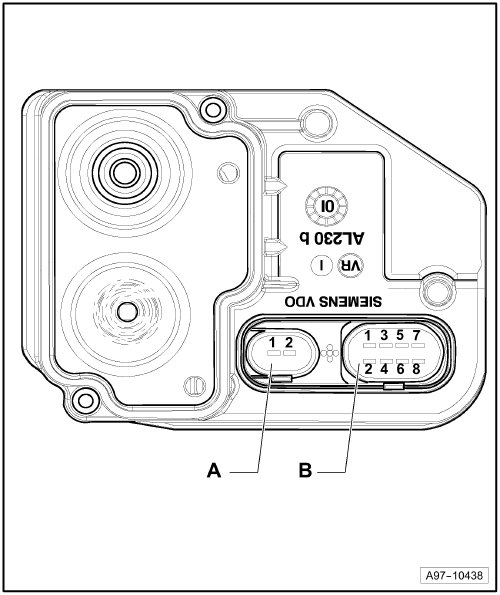

Pin Arrangements:







- All-Wheel Drive Control Module -J492-
Connector:

A - Double Connector -T2ax-

B - 8-Pin Connector -T8y-
