Oil Pan, Engine

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Audi.

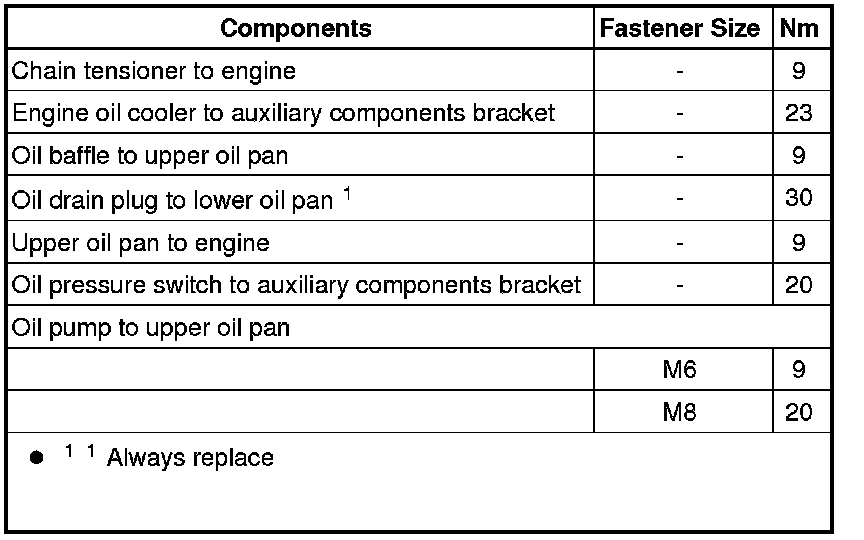

Fastener Tightening Specifications

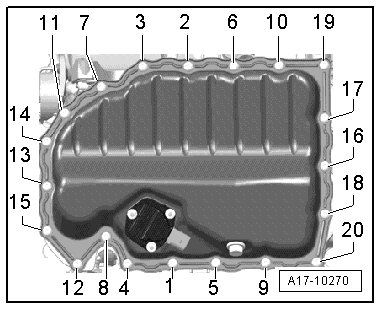

Lower Oil Pan - Tightening Sequence

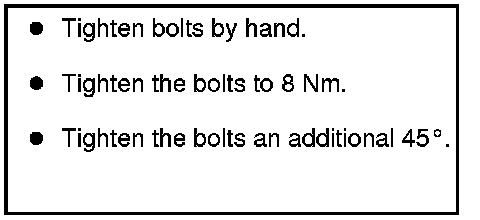

- Tighten bolts in 3 stages in - 1 to 20 - sequence as follows:

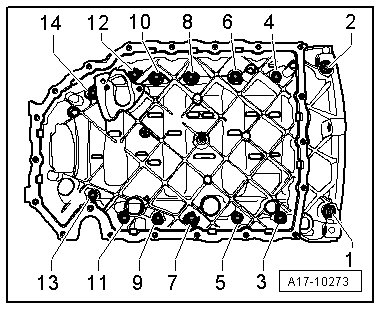

Upper Oil Pan - Tightening Sequence

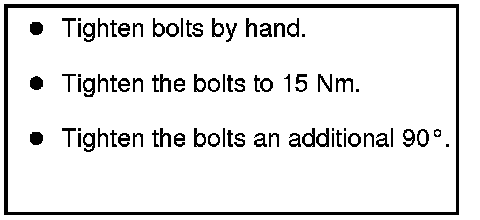

- Tighten bolts in 3 stages in - 1 to 14 - sequence as follows:

• There may be 13 bolts installed, depending on the version.

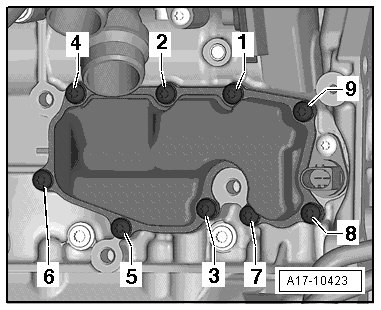

Oil Separator Tightening Sequence

- Tighten the bolts to 9 Nm in the following sequence: - 1 to 9 -.
