Controls, Housing

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Audi.

AI Repair Guides

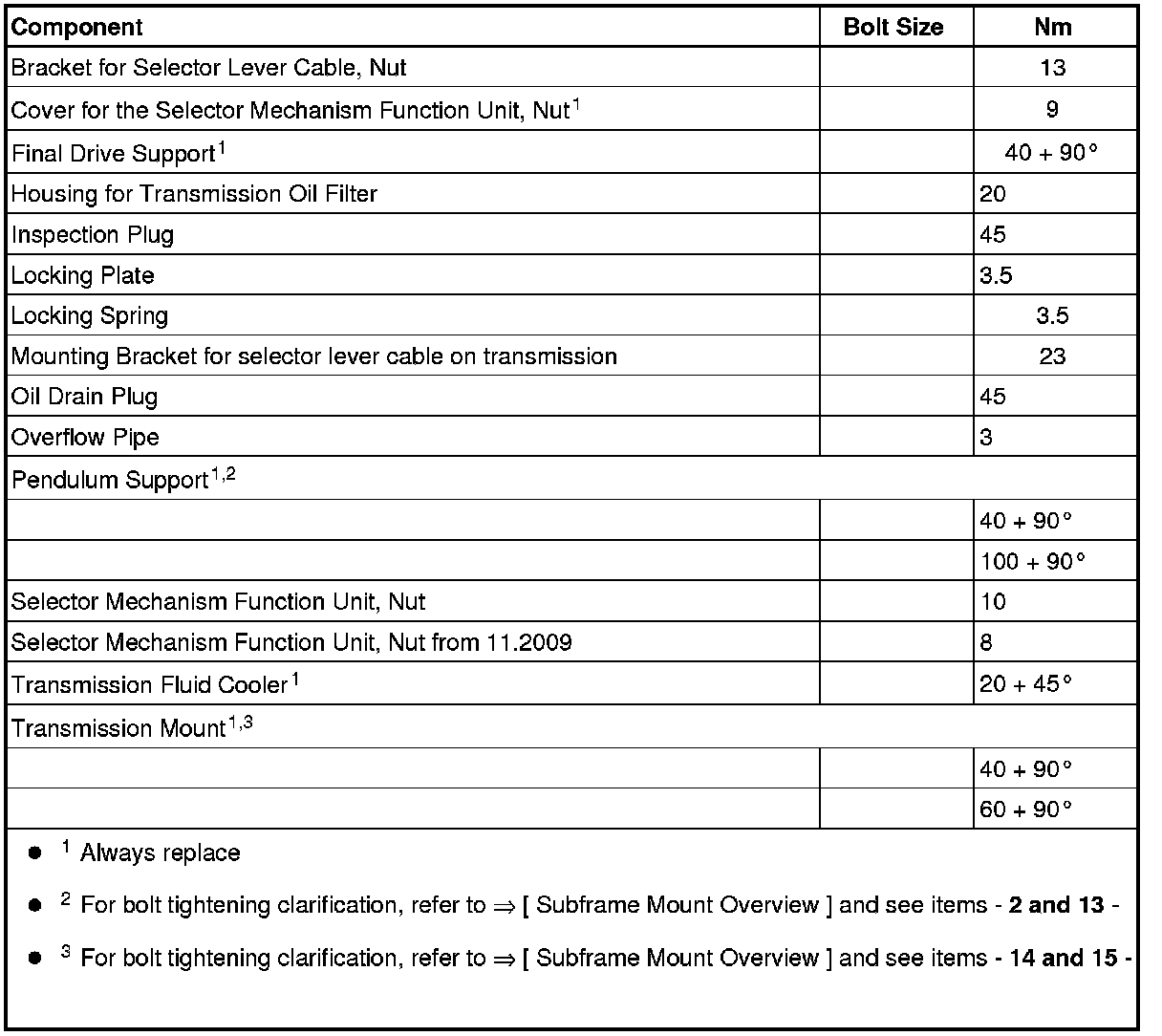

Fastener Tightening Specifications

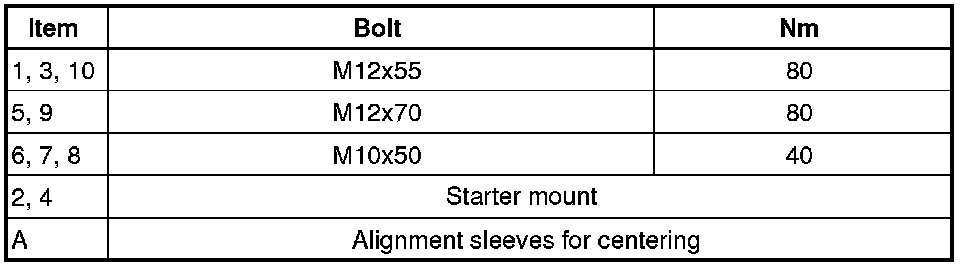

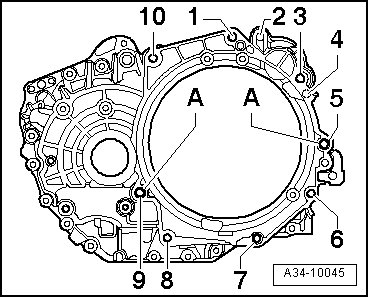

Attaching the Transmission to a 2.0L TFSI Engine

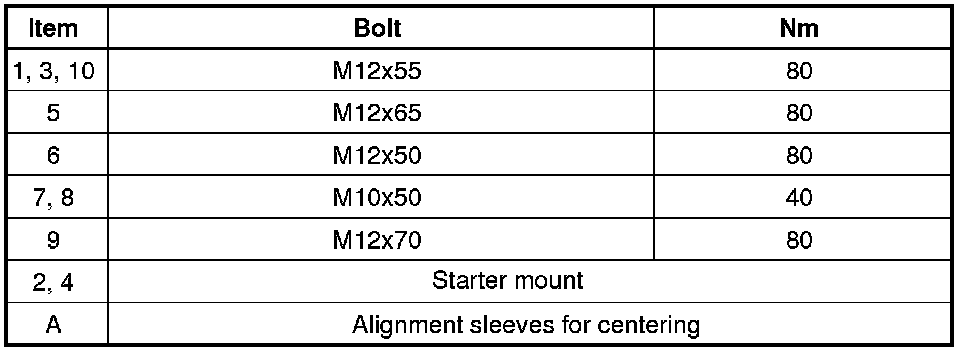

Attaching the Transmission to a 2.0L TDI CR Engine









← Back to System SpecificationsAll Makes
