Model Year 2007-Up

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Audi.

AI Repair Guides






Control Modules in Interior of Vehicle

Headlamp Range Control Module -J431-

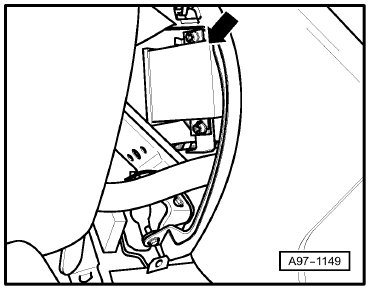

Component Location:


Below instrument panel, right, on left center console -Arrow-

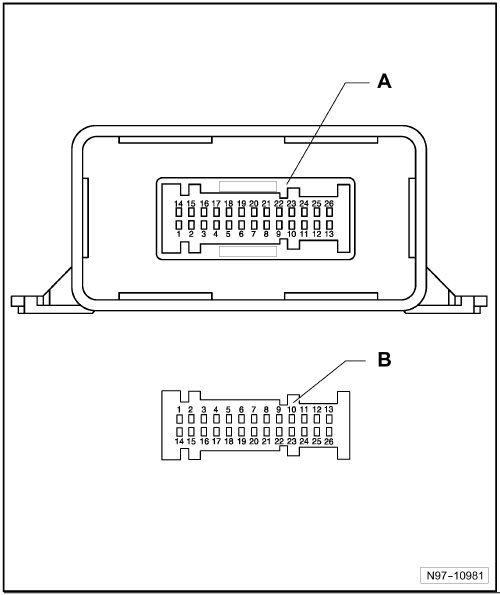

Pin Arrangements:







A - Headlamp Range Control Module -J431-
Connector:

B - 26-Pin Connector -T26a-
