Comfort System Central Control Module
Special tools, testers and auxiliary items required
• Pry Lever - Rmv Outside Mirror (80-200)
Removing
- Component location, in luggage compartment right rear below side trim.
- Right rear luggage compartment trim removed.

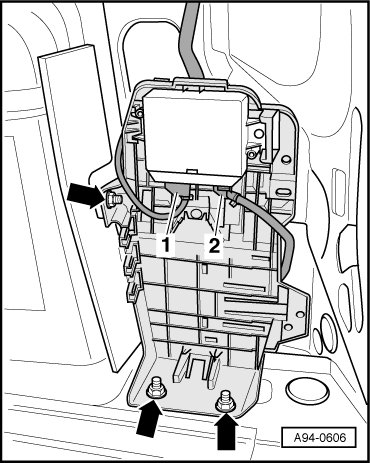

- Disconnect the connectors - 1 - and - 2 -.
- Remove nuts - arrow - and remove holding plate from control module.
- Tighten the nuts to 4.5 Nm.
- Lay open the wiring harness at holding plate using (80-200).

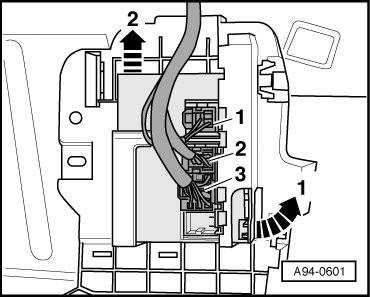

- Disconnect electrical harness connectors - 1 - to - 3 -.
- Press clip - arrow - to the side and pull control module out of holding plate.
- When installing, reinstall cable ties in the same place at which they were removed earlier.
