Front Axle Toe, Adjusting

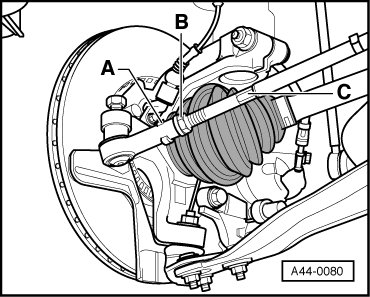

- To loosen or tighten lock nut - B -, counter hold at the tie rod end - A - with a wrench.
- Loosen lock nut - B -.
- Adjust toe on left and right-hand wheels with hex - C -.
• Make sure that boot on the steering gear is not damaged or twisted. Twisted boots wear out quickly.
• Only tighten lock nuts when vehicle is resting on the ground - tie rod end must be parallel to suspension strut steering lever.
- Tighten lock nut - B - and check toe-in value again.
• After tightening lock nut - B - it is possible that the value deviates slightly.
• If the measured toe nevertheless lies within the tolerance, the adjustment is correct.
