Control modules in rear part of vehicle

Control modules in right luggage compartment

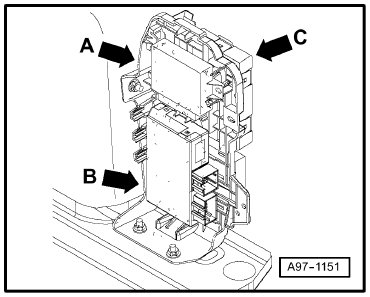

Component Location:







A - Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
B - Towing Recognition Control Module -J345-
C - Comfort System Central Control Module -J393-

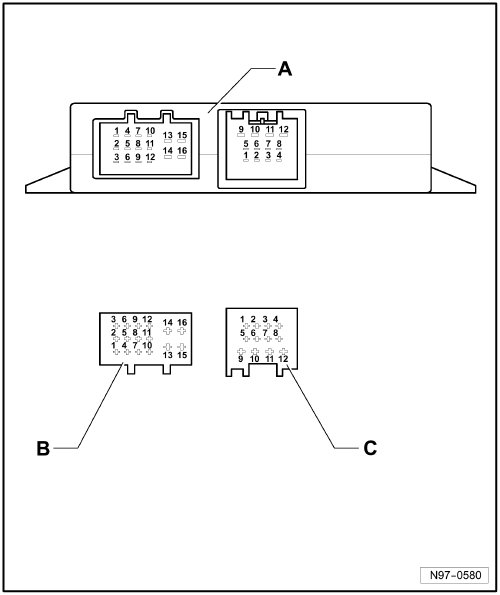

Pin Arrangements:







A - Towing Recognition Control Module -J345-
Connector:

B - 16-Pin Connector -T16h-

C - 12-Pin Connector -T12h-

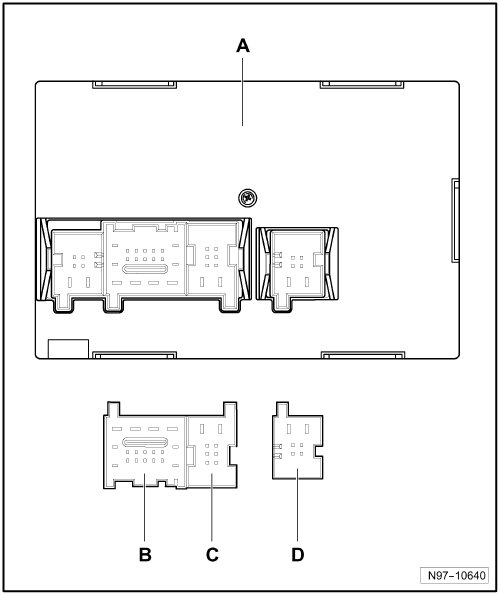

Pin Arrangements:







A - Comfort System Central Control Module -J393-
Connector:

B - 18-Pin Connector -T18-

C - 8-Pin Connector -T8g-

D - 6-Pin Connector -T6g-



Pin Arrangements:







A - Parking Aid Control Module -J446-
Connector (4-Channel
Parking Aid):

B - 16-Pin Connector -T16f-

C - Not used

D - 12-Pin Connector -T12i-

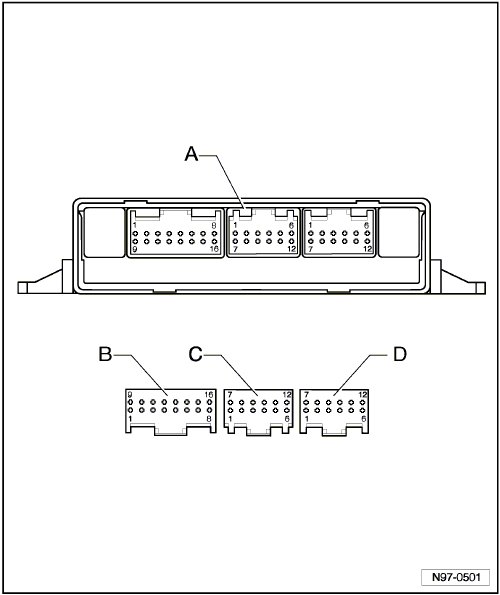

A - Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
Connector (8-Channel Parking Aid):

B - 16-Pin Connector -T16f-

C - 12-Pin Connector -T12t-

D - 12-Pin Connector -T12i-
