Fastener Tightening Specifications

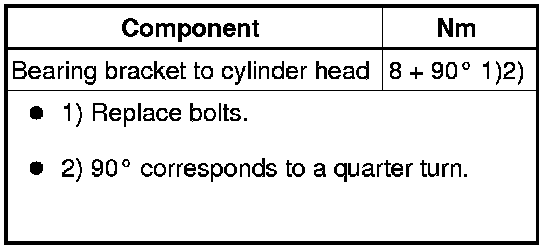

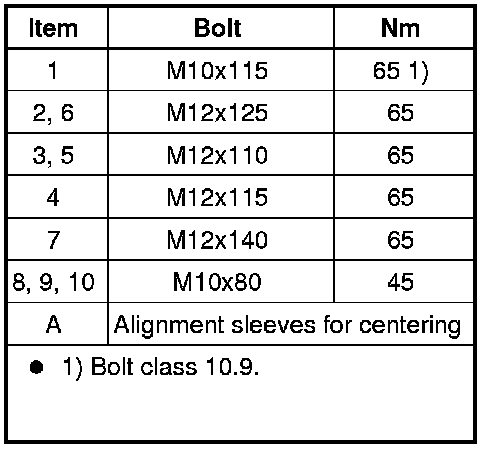

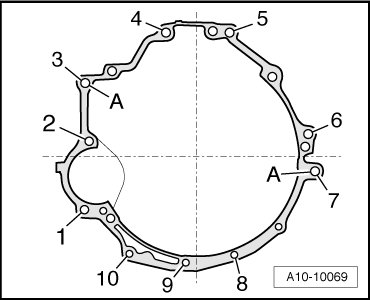

Engine/Manual Transmission, Fastening

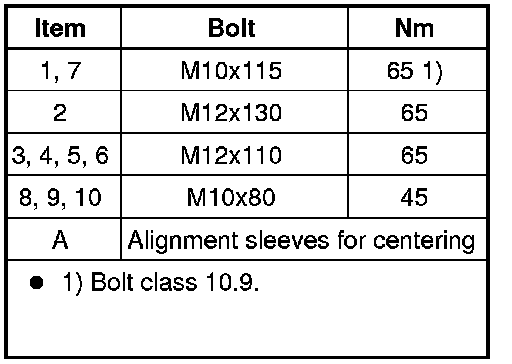

Engine/Multitronic Transmission, Fastening

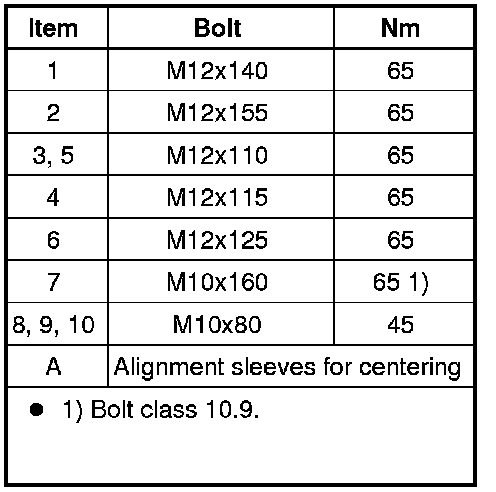

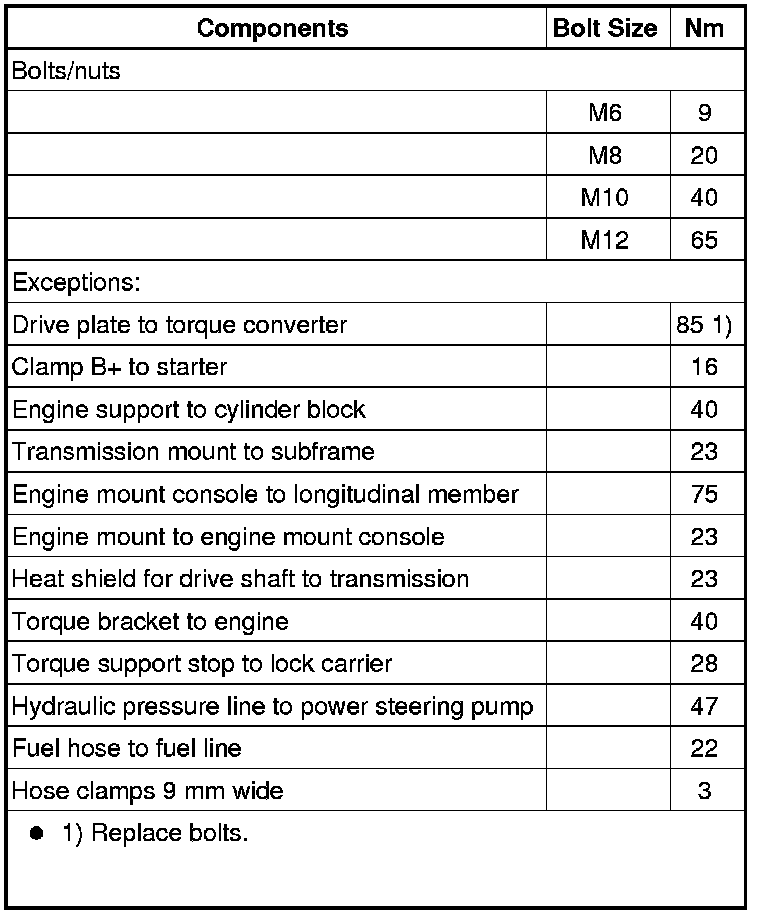

Engine/Automatic Transmission, Fastening

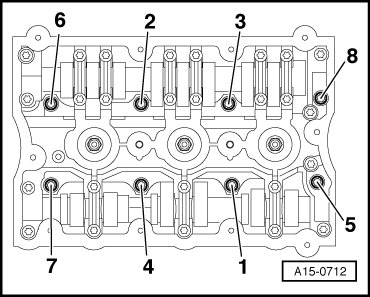

Cylinder Head
Use new cylinder head bolts
Tighten 40 Nm.
Turn additional 90° (1/4 turn)
Turn additional 90° (1/4 turn)

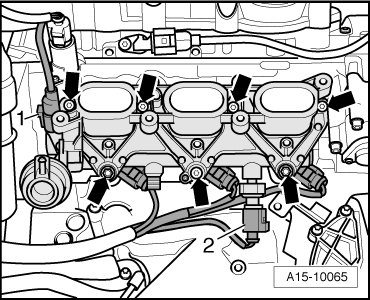

Lower intake manifold 9 Nm
Fasten the bolts in a diagonal sequence and in stages
Upper intake manifold 6 Nm
Tighten diagonally in stages

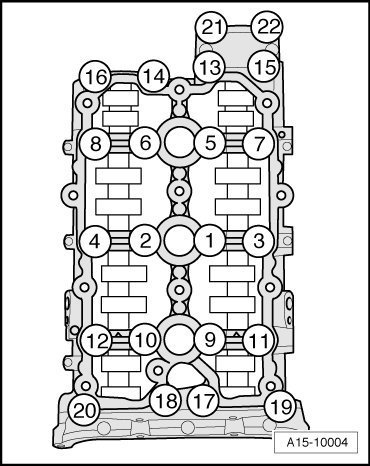

Camshaft guild frame
Hand tighten guide frame bolts equally, in sequence 1 to 22
Fasten guide frame bolts in sequence 22 to 1 until they stop

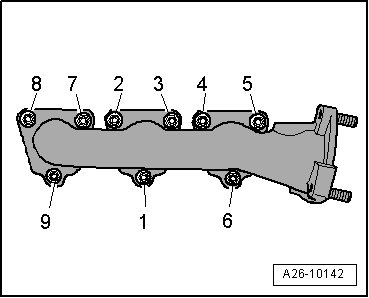

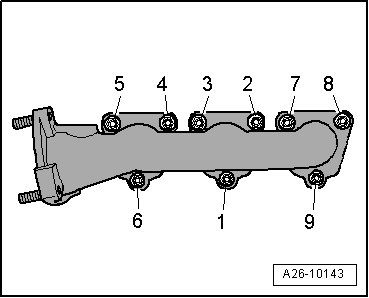

Exhaust manifold
Pre-tighten 15 Nm.
Tighten 25 Nm.
Vibration Damper

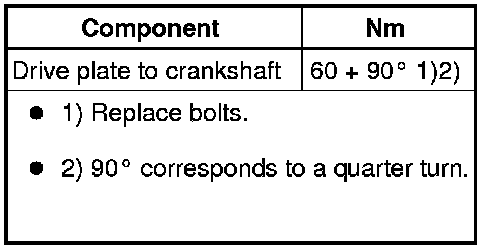

Drive plate

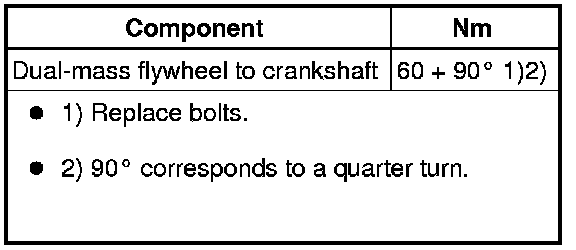

Dual Mass Flywheel
Oil pump to upper pan 20 Nm
Coolant pump 9 Nm
