Electrical Test Table

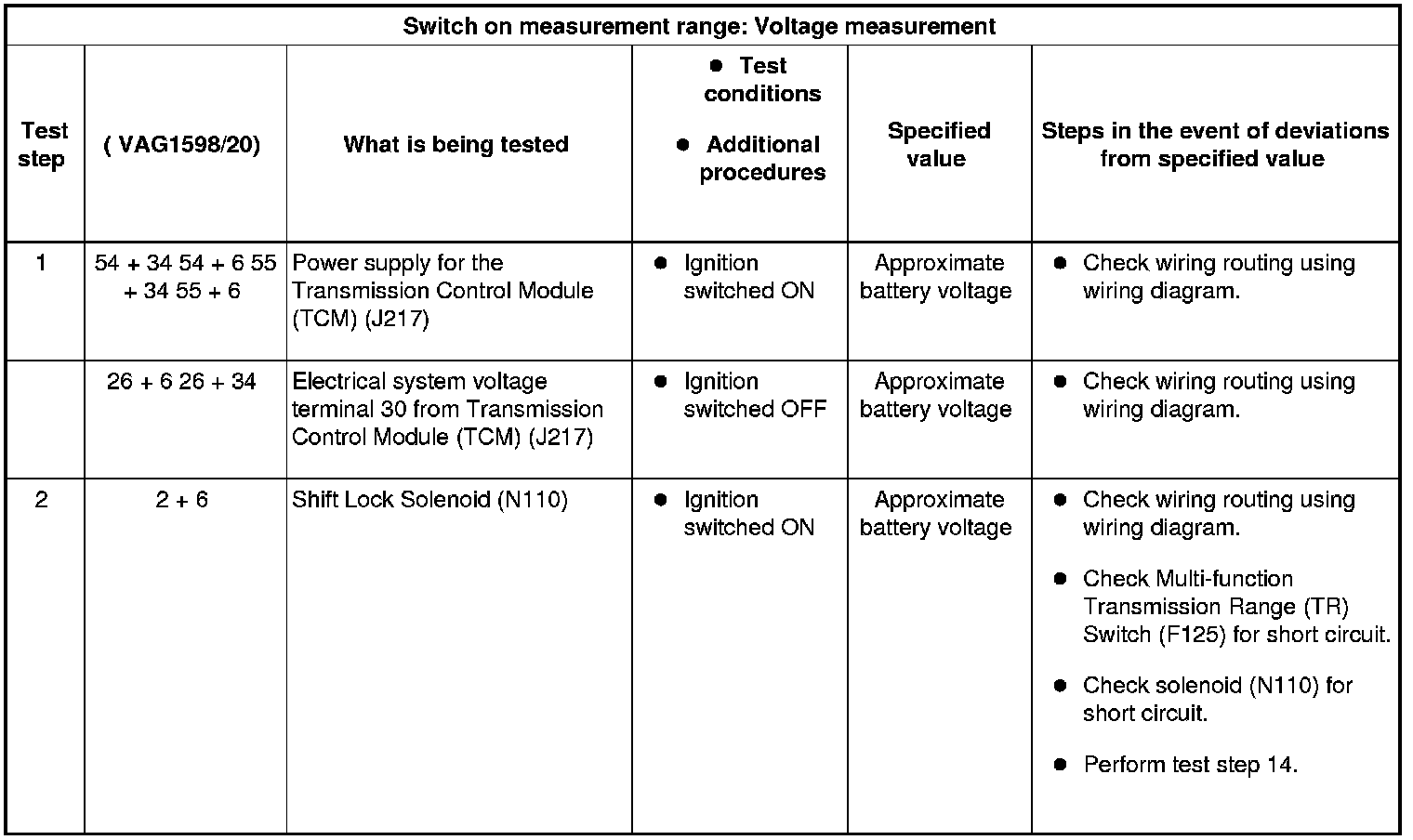

Test Step 1-2:

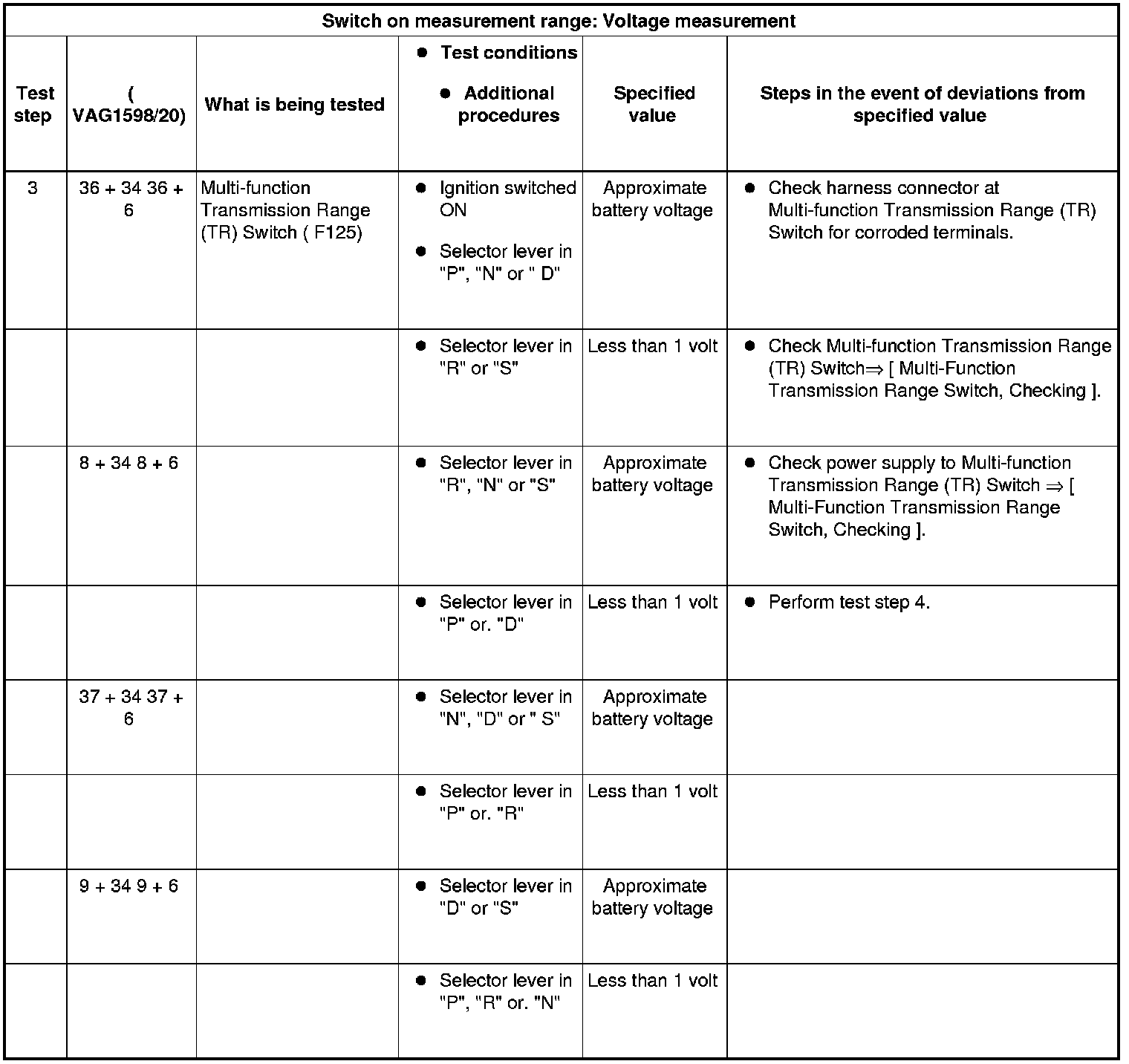

Test Step 3:

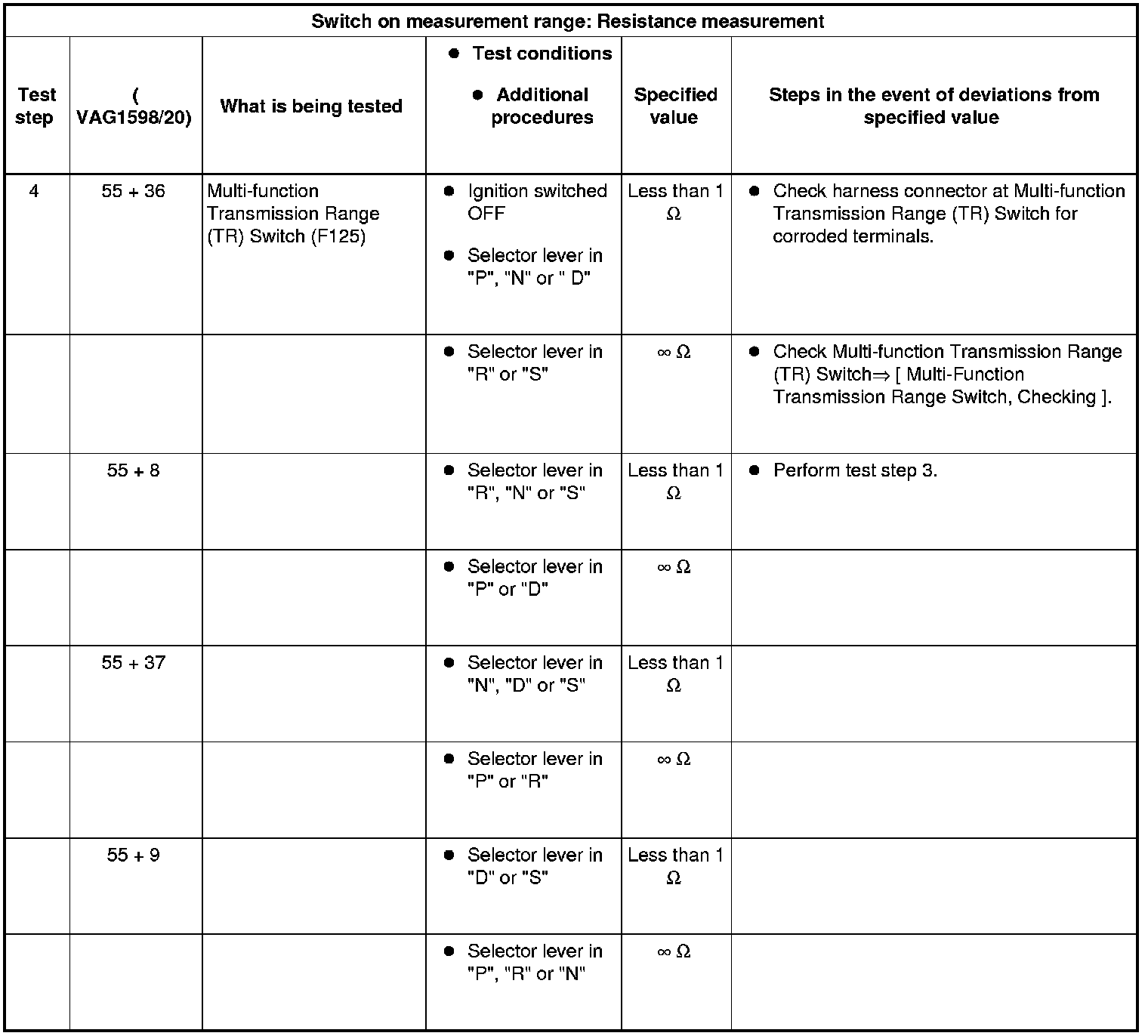

Test Step 4:

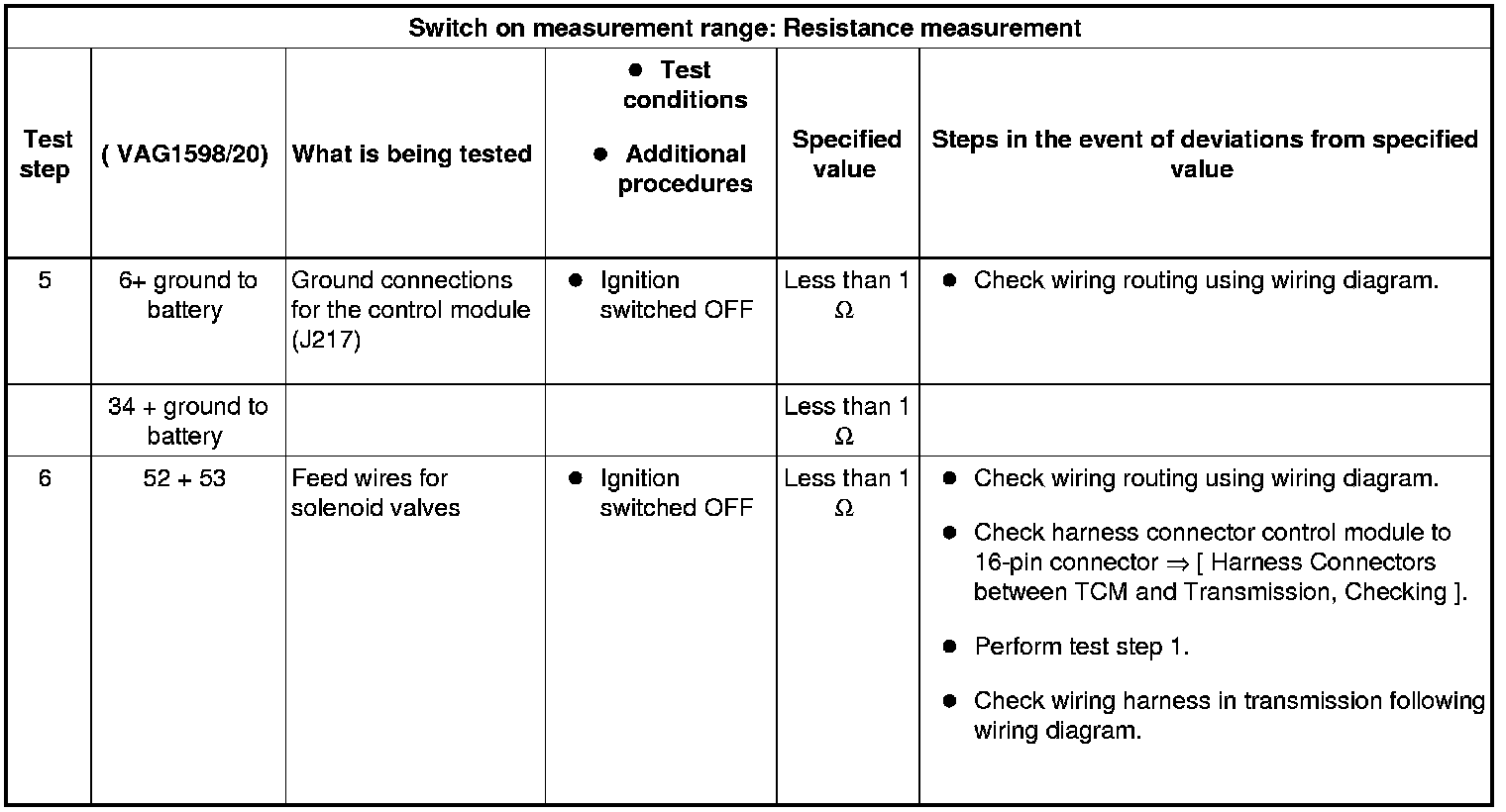

Test Step 5-6:

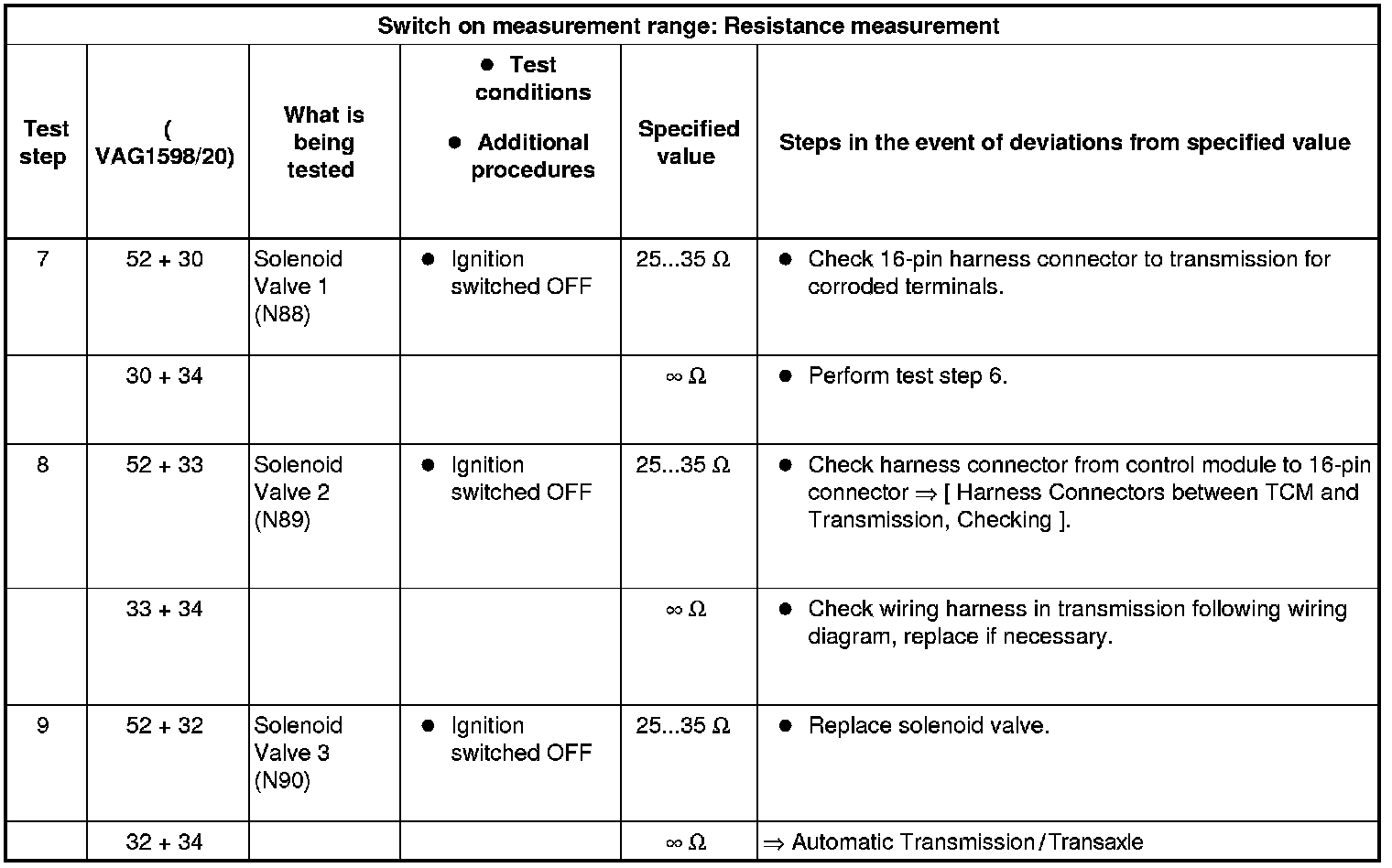

Test Step 7-9:

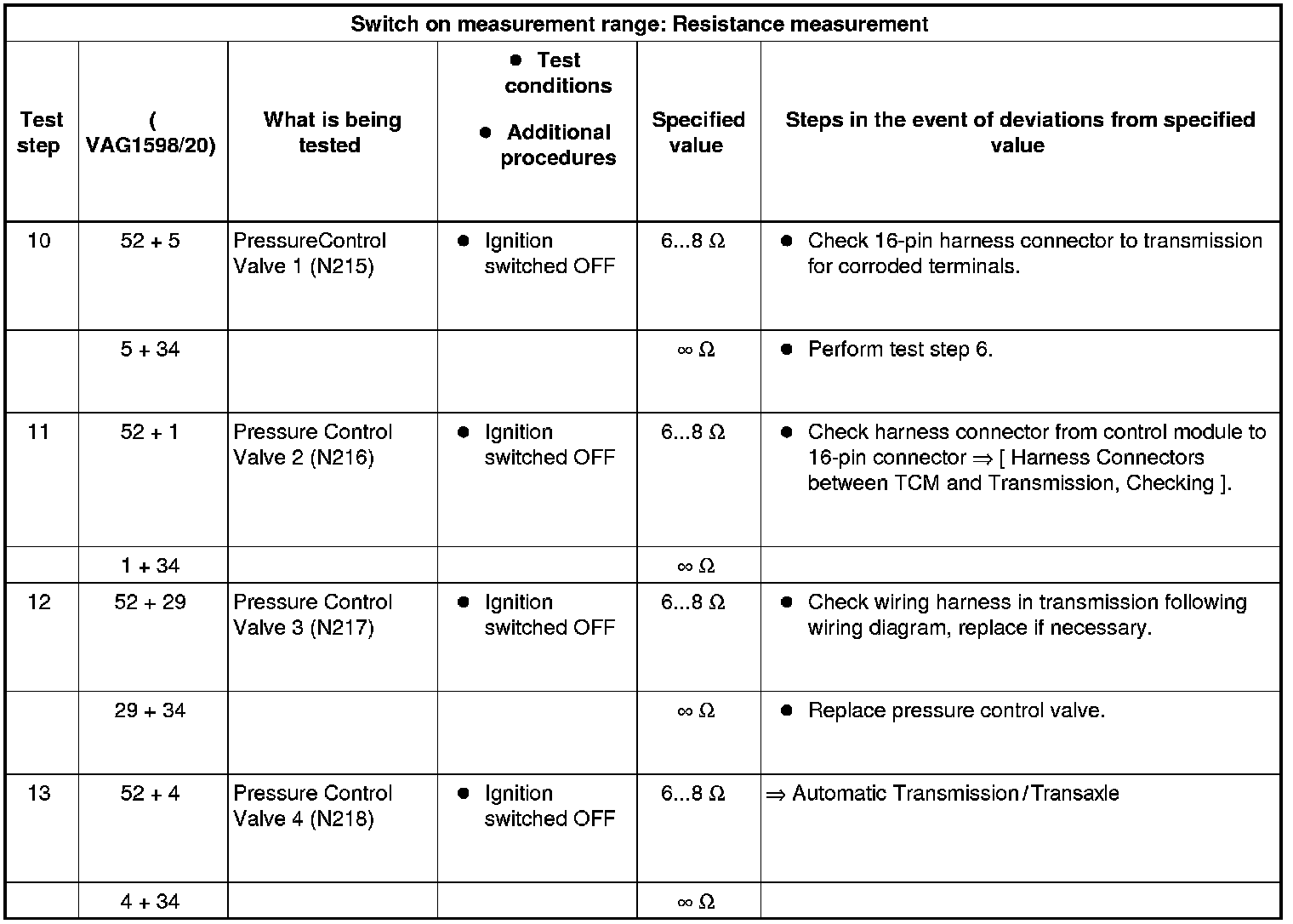

Test Step 10-13:

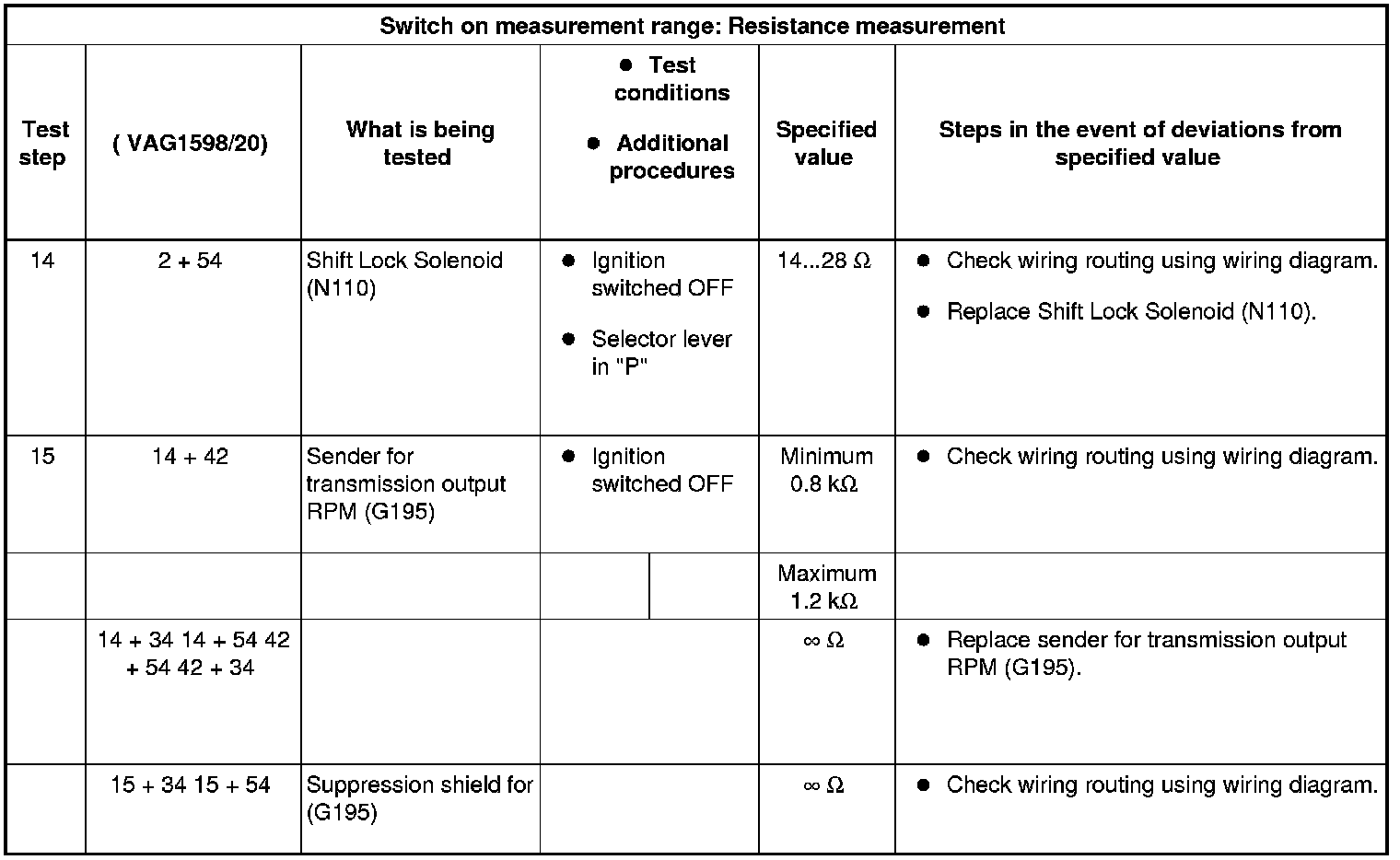

Test Step 14-15:

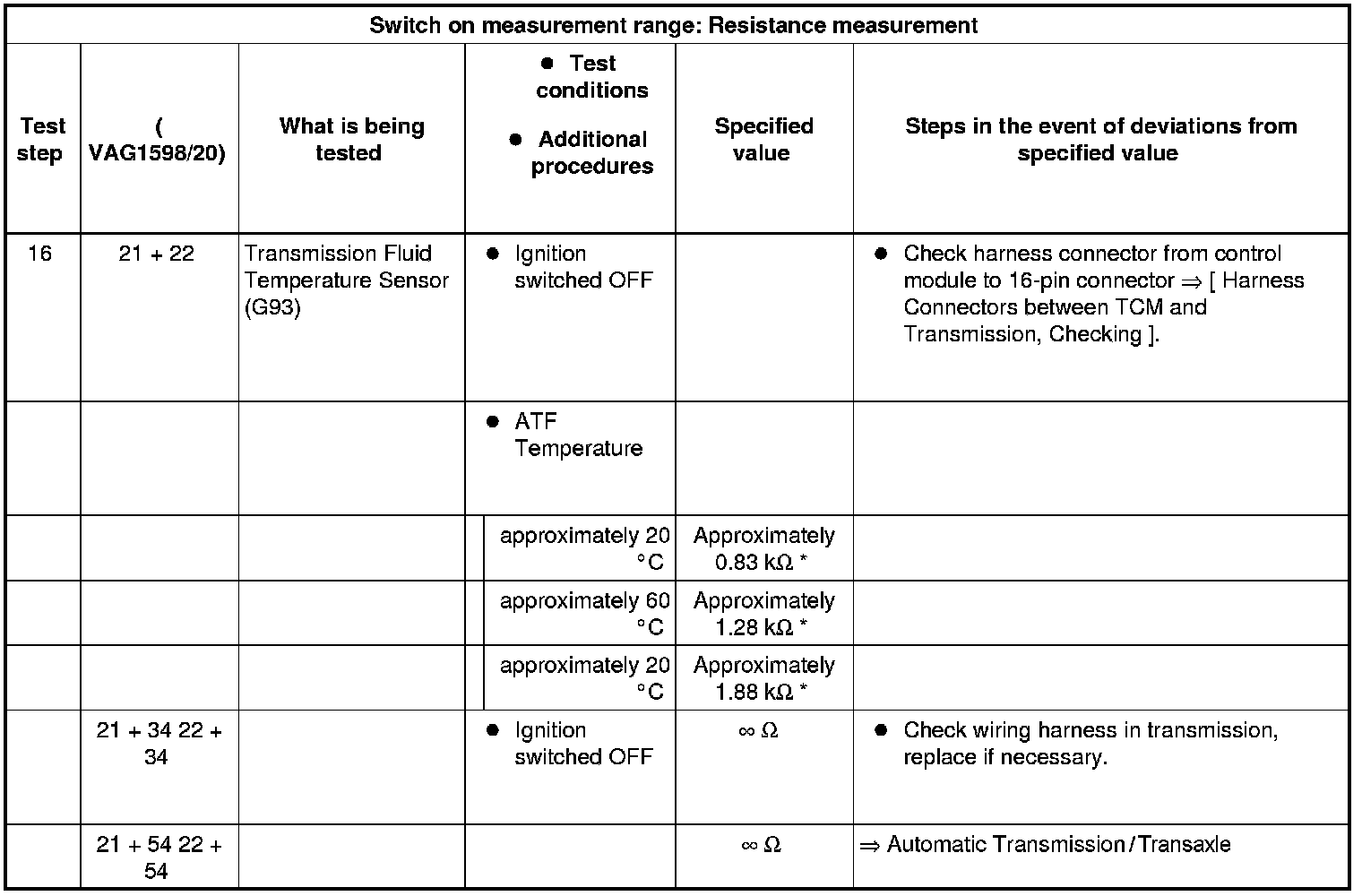

Test Step 16:





* Permissible tolerance: ± 0.1 kohms
