Digital Sound System Control Module
• Unlisted connector terminals are not assigned.

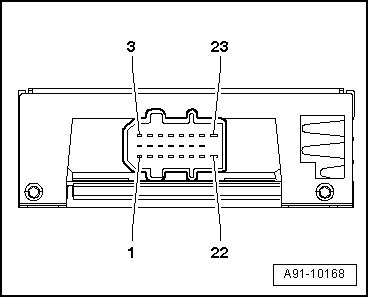

Blue 23-pin multi-pin connector
1 Right rear signal from Radio (R)/Navigation System with CD Drive Control Module (J401)/Radio/Navigation Display Control Module (J503)
2 Signal ground from Radio ( R)/Navigation System with CD Drive Control Module (J401)/Radio/Navigation Display Control Module (J503)
3 Left rear signal from Radio (R)/Navigation System with CD Drive Control Module (J401)/Radio/Navigation Display Control Module (J503)
9 Positive switched from Radio (R)/Navigation System with CD Drive Control Module (J401)/Radio/Navigation Display Control Module (J503)
14 Bass Loudspeaker (R100) (+)
15 Bass Loudspeaker (R100) (-)
17 Loudspeaker, left rear (+)
18 Loudspeaker, left rear (-)
20 Loudspeaker, right rear (+)
21 Loudspeaker, right rear (-)
22 Terminal 31
23 Terminal 30
