Speech Input Control Module
- Turn off all electrical consumers.
- Remove ignition key.
Removing
- Remove right front seat.
• Seat belt on seat frame must not be loosened.
- Remove right A-pillar trim.
- Fold back the floor mat.

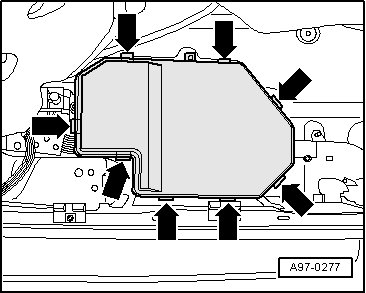

- Unlock the cover on the electronics box - arrows - and remove the cover.

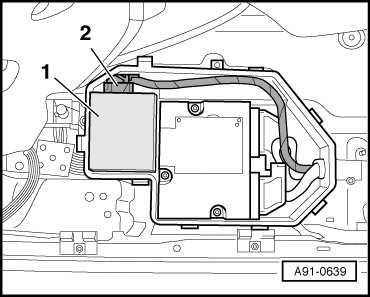

- Disconnect connector - 2 - on Speech Input Control Module (J507) - 1 -.
- Remove the Speech Input Control Module (J507) - 1 - from the electronics box.
Installing
- Install in reverse order.
