Digital Sound System Control Module Connectors
• Unlisted connector terminals are not assigned.

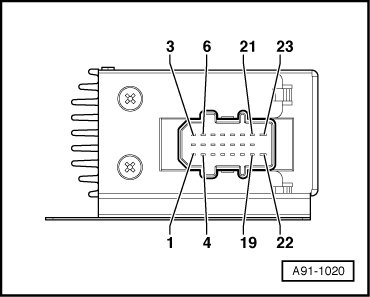

23-pin connector
2 Left Front Bass Speaker ( R21) (+)
3 Left Front Bass Speaker ( R21) (-)
6 Right Front Bass Speaker ( R23) (+)
9 Right Front Bass Speaker ( R23) (-)
12 Left Rear Speaker (R4) (+)
13 Positive switched from Radio (R)/Operating Electronics, Navigation Control Module (J402)/Radio/Navigation Display Control Module (J503)
14 Left rear signal from Radio (R)/Operating Electronics, Navigation Control Module (J402)/Radio/Navigation Display Control Module (J503)
15 Left Rear Speaker (R4) (-)
16 Left front signal from Radio (R)/Operating Electronics, Navigation Control Module (J402)/Radio/Navigation Display Control Module (J503)
17 Right rear signal from Radio (R)/Operating Electronics, Navigation Control Module (J402)/Radio/Navigation Display Control Module (J503)
18 Right Rear Speaker (R5) (-)
19 Signal ground from Radio ( R)/Operating Electronics, Navigation Control Module (J402)/Radio/Navigation Display Control Module (J503)
20 Right front signal from Radio (R)/Operating Electronics, Navigation Control Module (J402)/Radio/Navigation Display Control Module (J503)
21 Right Rear Speaker (R5) (+)
22 Terminal 31
23 Terminal 30
