Navigation System II-D Navigation Interface, Sedan

- Turn off all electrical components.

- Remove ignition key.

Removing

- Remove left luggage compartment side trim.

- Remove bolts - arrows - (14 Nm) and remove base mount - 1 -.

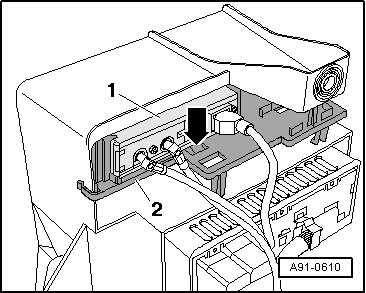

- Disconnect connectors at Navigation Interface ( R94) - 1 -.





- Release Navigation Interface (R94) - 1 - at catch - arrow - and remove from mounting plate - 2 -.

Installing

- Install in reverse order.
