Ignition Switch: Testing and Inspection

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Acura.

AI Repair Guides
1. Remove the dashboard lower cover (see Electrical Switch Replacement).

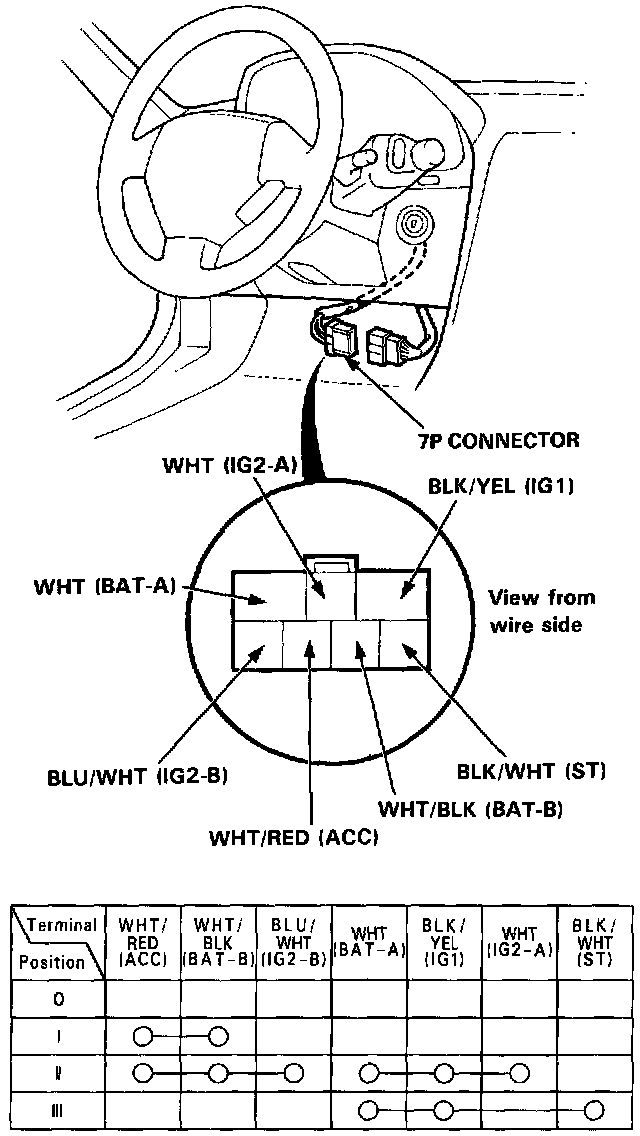

2. Disconnect the 7P connector from the floor wire harness.

Ignition Switch Test:




3. Check for continuity between the terminals in each switch position according to the table.
