A/T Technical Data

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Acura.

AI Repair Guides

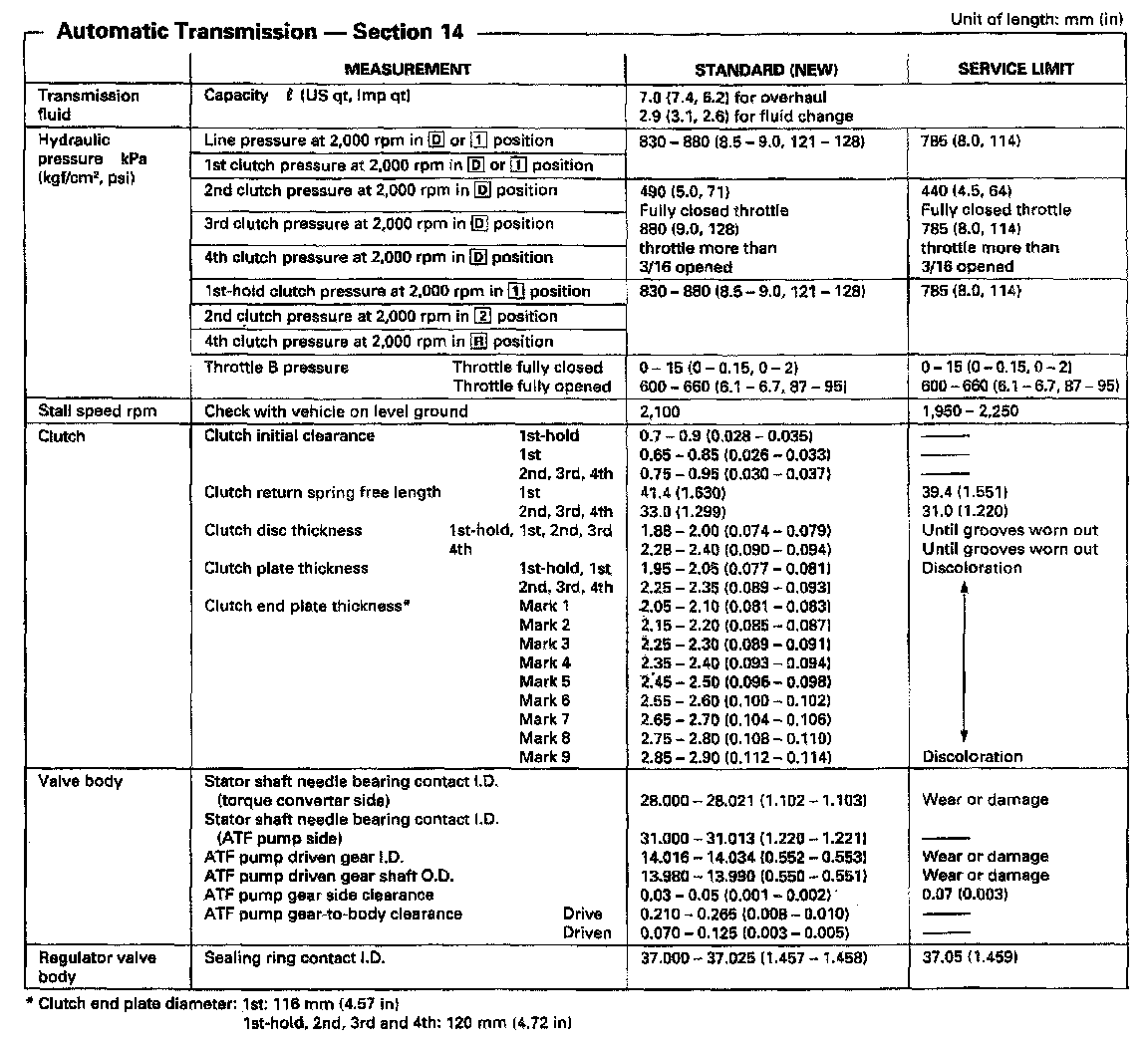

MR9A 4-spd A/T, Line Pressure, Clutch Thickness & Valve Body:

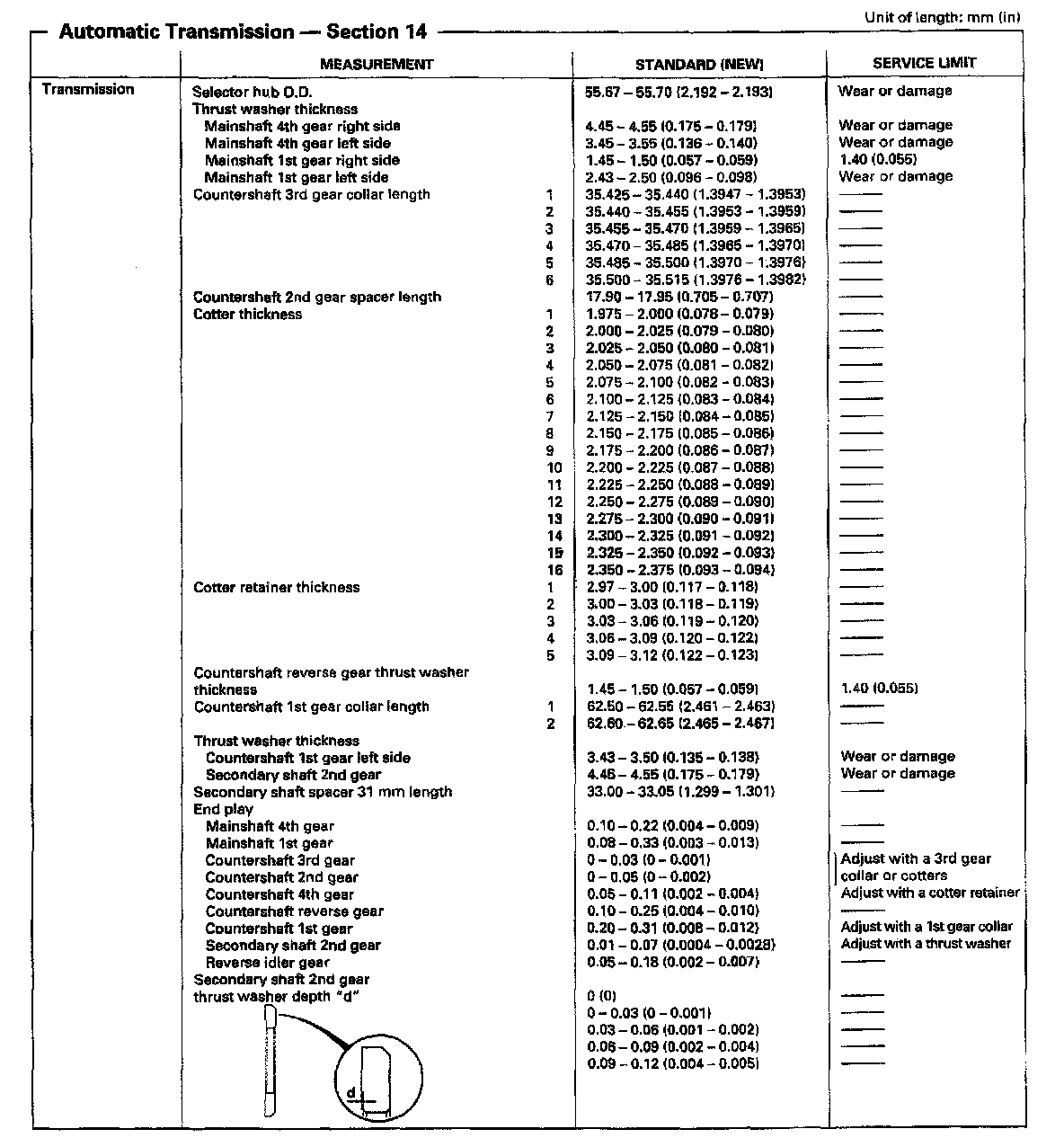

MR9A 4-spd A/T, Accumulator, Servo Body & Shaft Measurements:

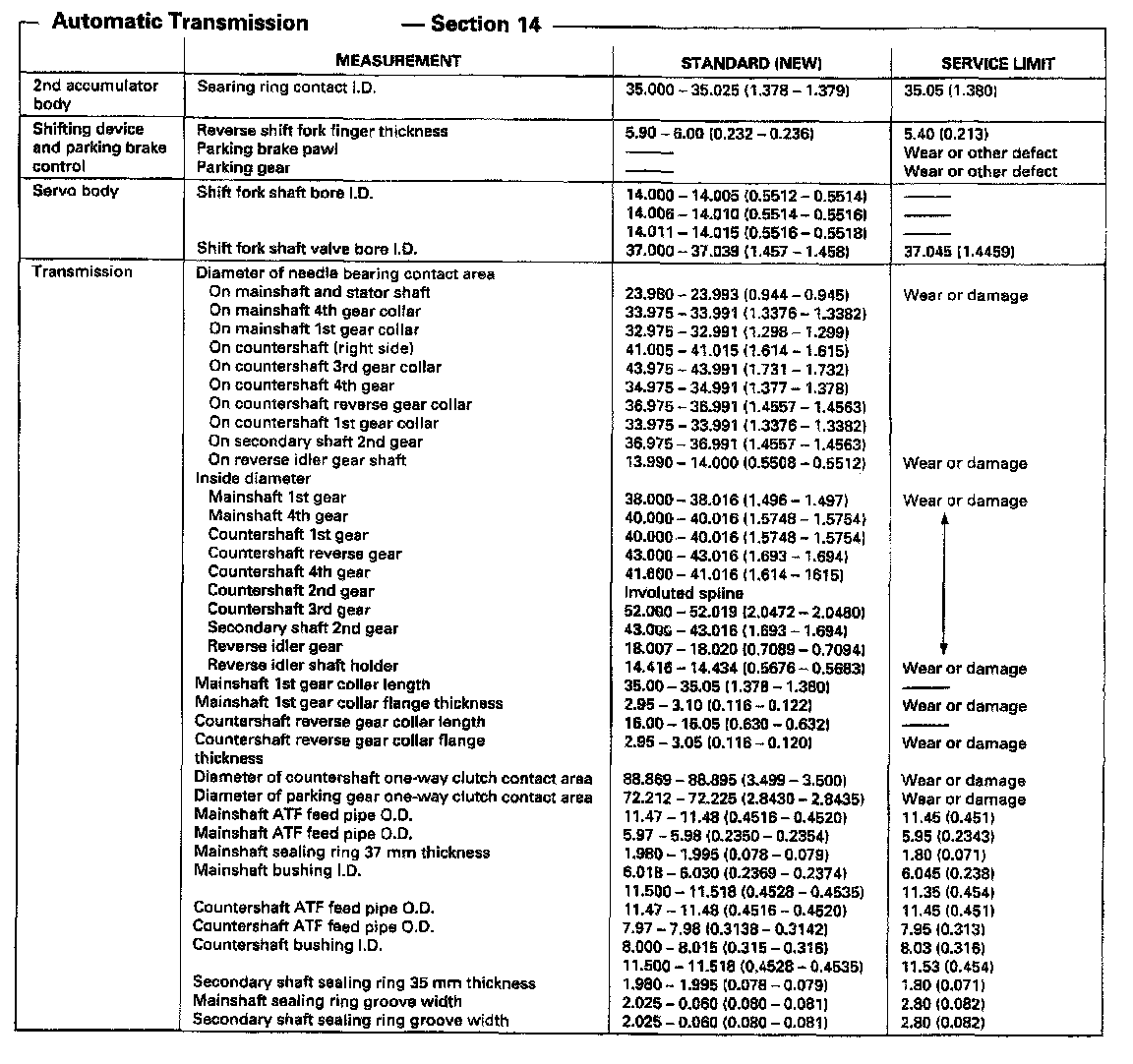

MR9A 4-spd A/T, Mainshaft / Countershaft Measurements:

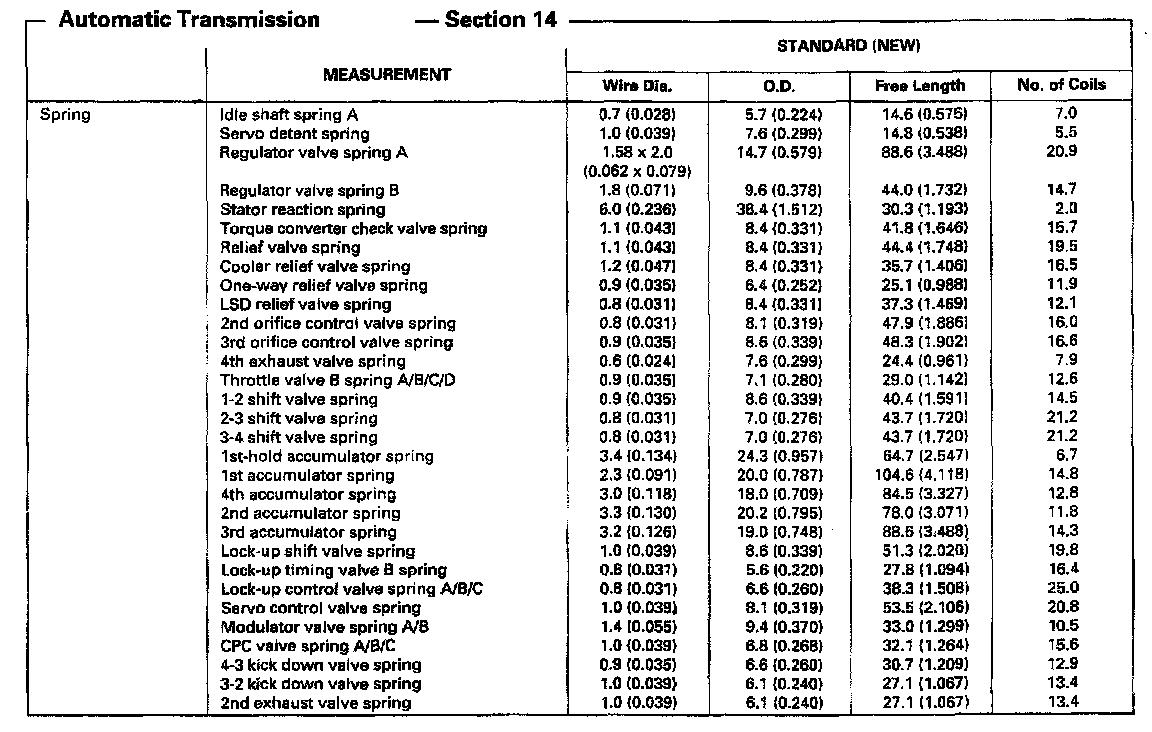

MR9A 4-spsd A/T, Transmission Spring Measurements:

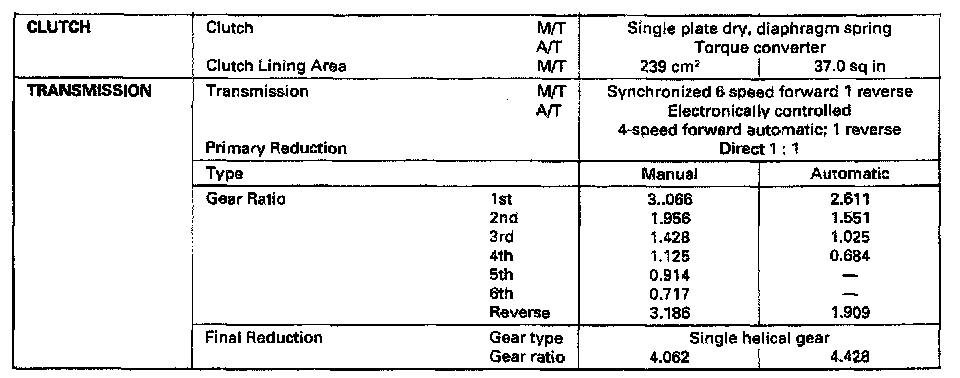

Manual/Automatic Transmission Gear Ratios:
