Ignition System: Testing and Inspection

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Acura.

AI Repair Guides
WARNING: High voltage in the ignition system can cause a strong electrical shock. Avoid direct contact to the vehicle body during the following spark test.

1. Remove the spark plug.
2. Connect the spark plug to a high-tension lead.

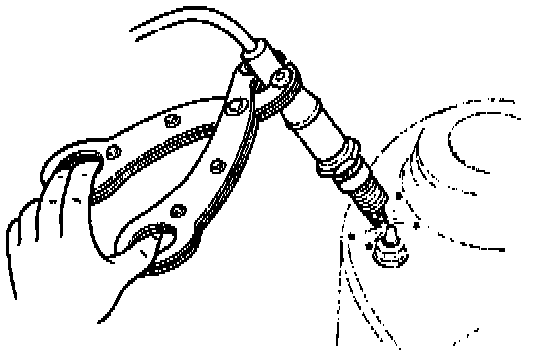

View: Checking Spark:





3. Hold the high-tension lead with insulated pliers 5 - 10 mm (0.2 - 0.39 in) from a ground.
4. Crank the engine and verify that there is a strong blue spark. If not, replace the spark plug or high-tension lead as necessary.
