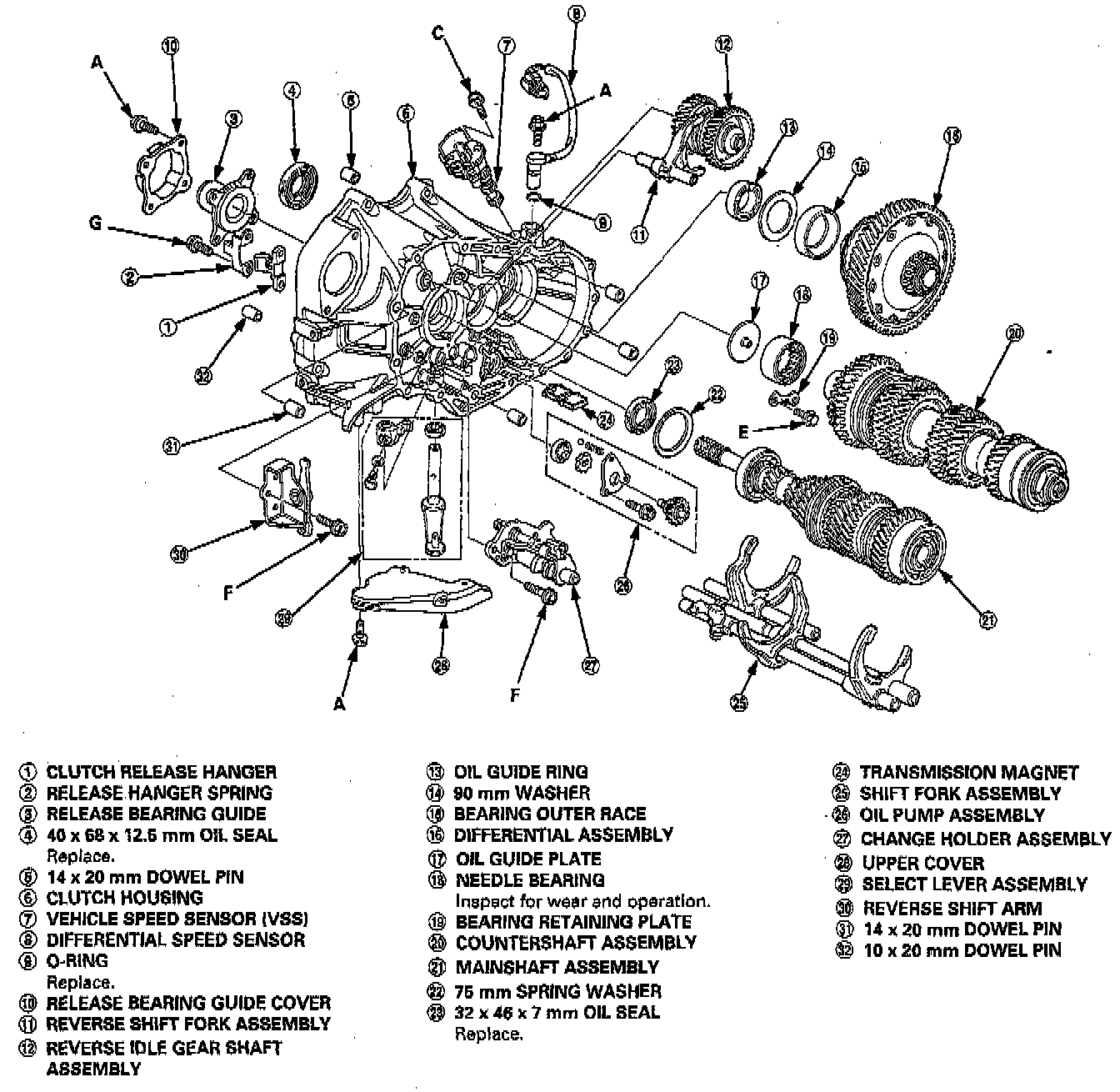

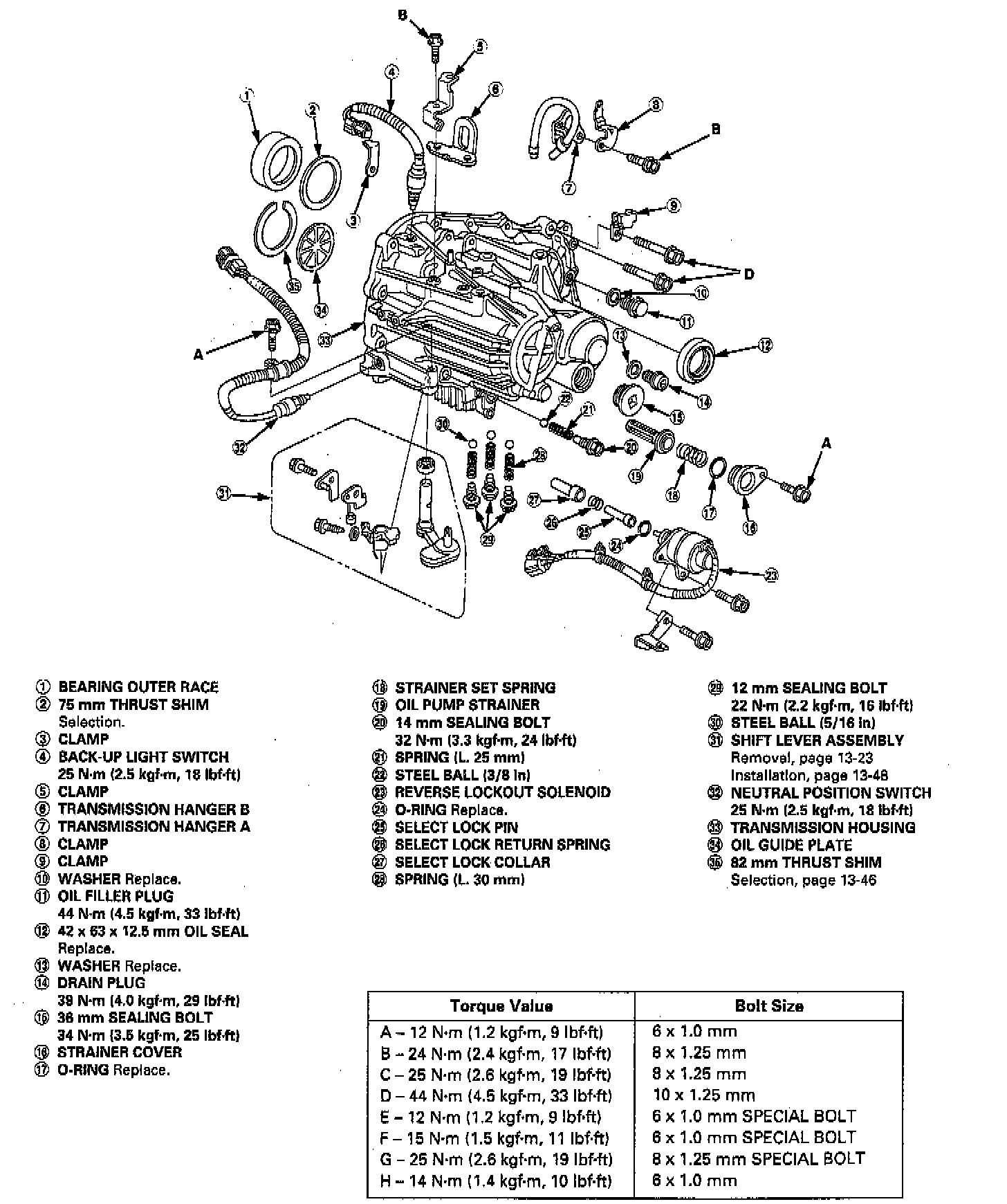

Manual Transaxle

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1999 Acura.

AI Repair Guides

Part 1 Of 2:



Part 2 Of 2:

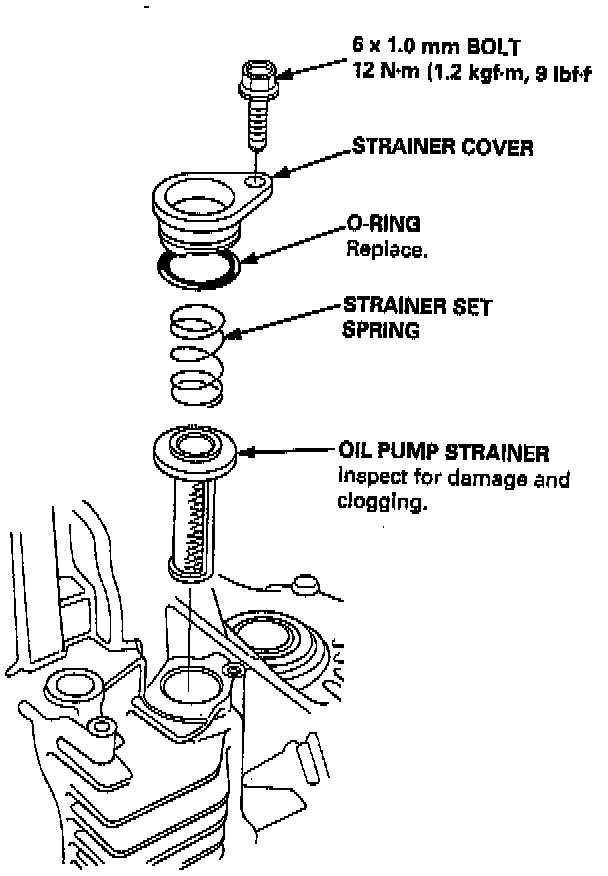

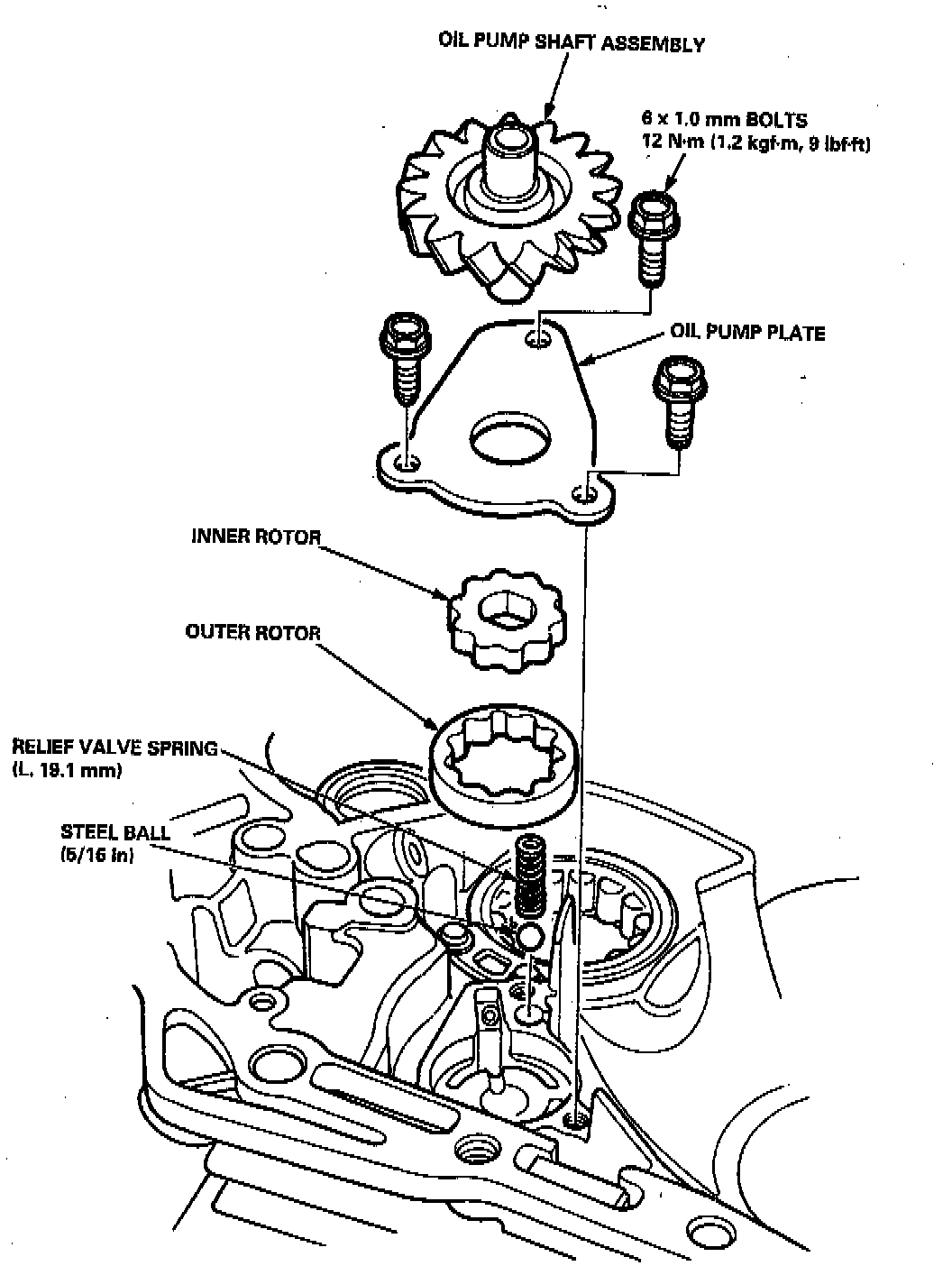

Oil Pump Part 1 Of 2:



Oil Pump Part 2 Of 2:
