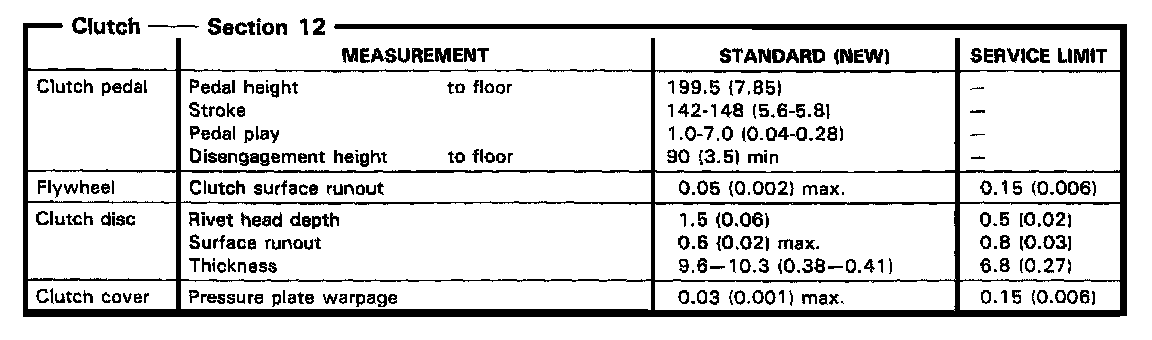

K4A6 5-spd M/T, Clutch Measurements:

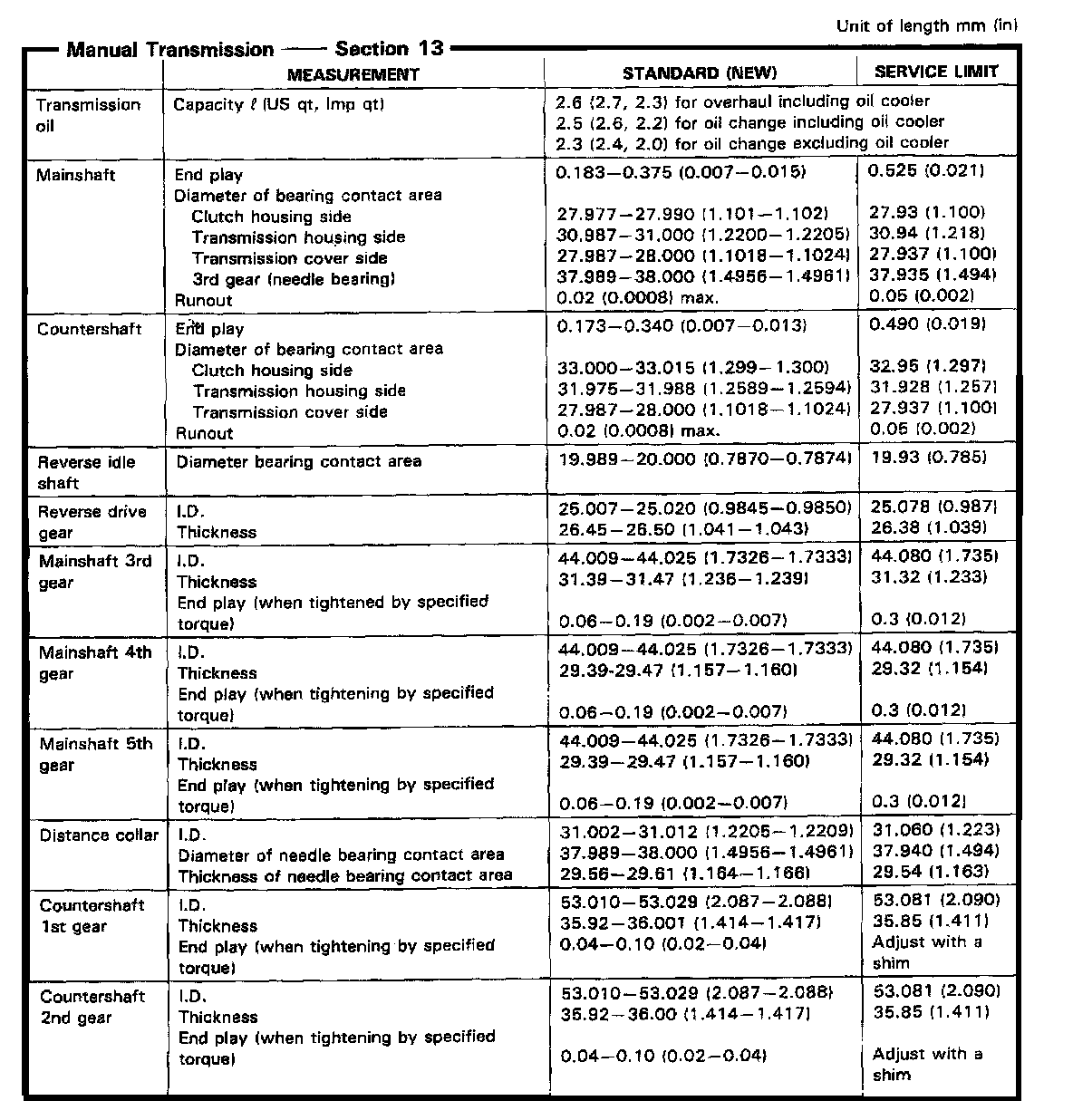

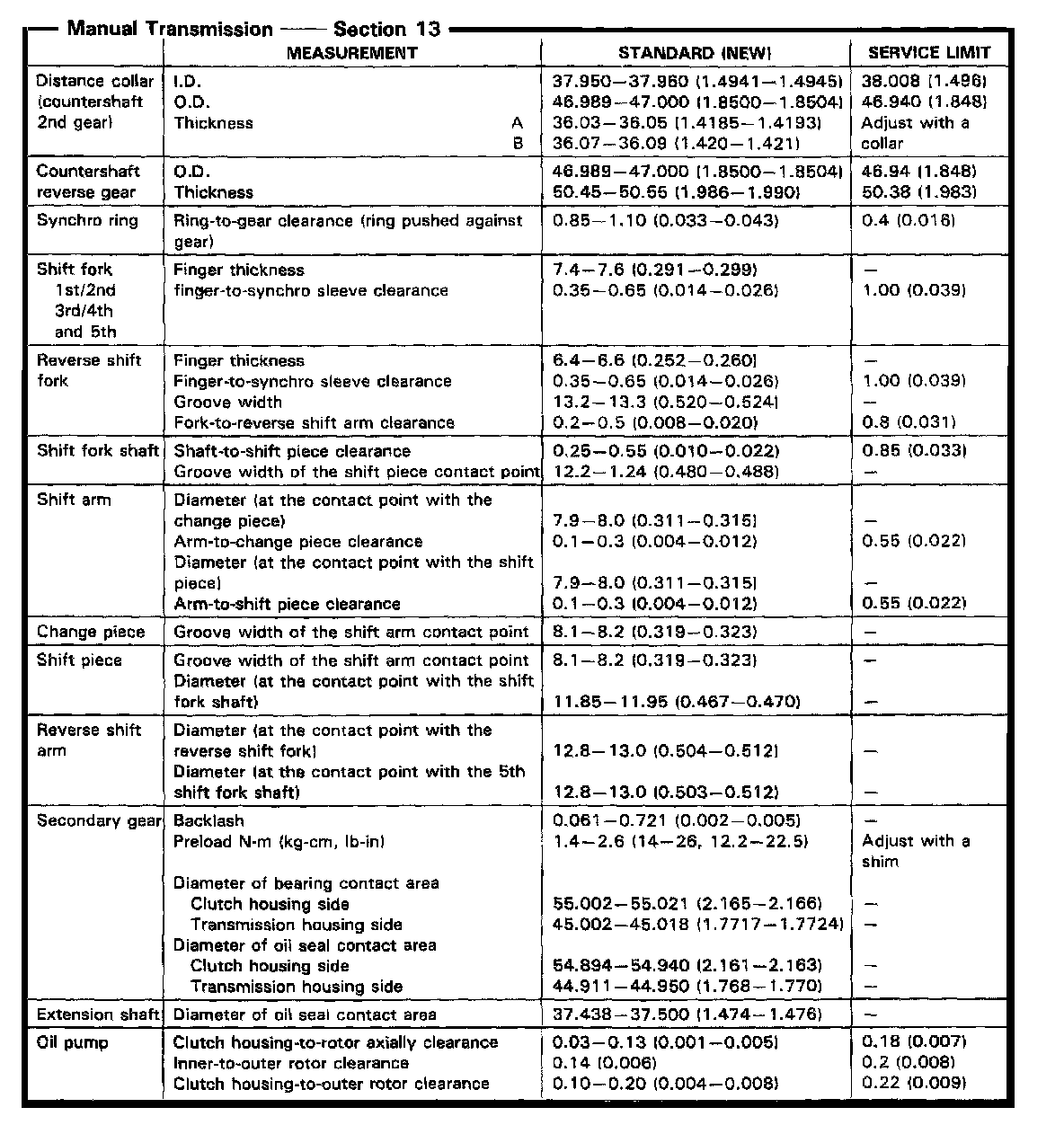

K4A6 5-spd M/T, Main/Countershaft Measurements:
K4A6 5-spd M/T, Countershaft Gear, Reverse Gear Clearances:
Manual/Automatic Transmission Gear Ratios:
M/T Technical Data
