A/T Technical Data

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 1991 Acura.

AI Repair Guides

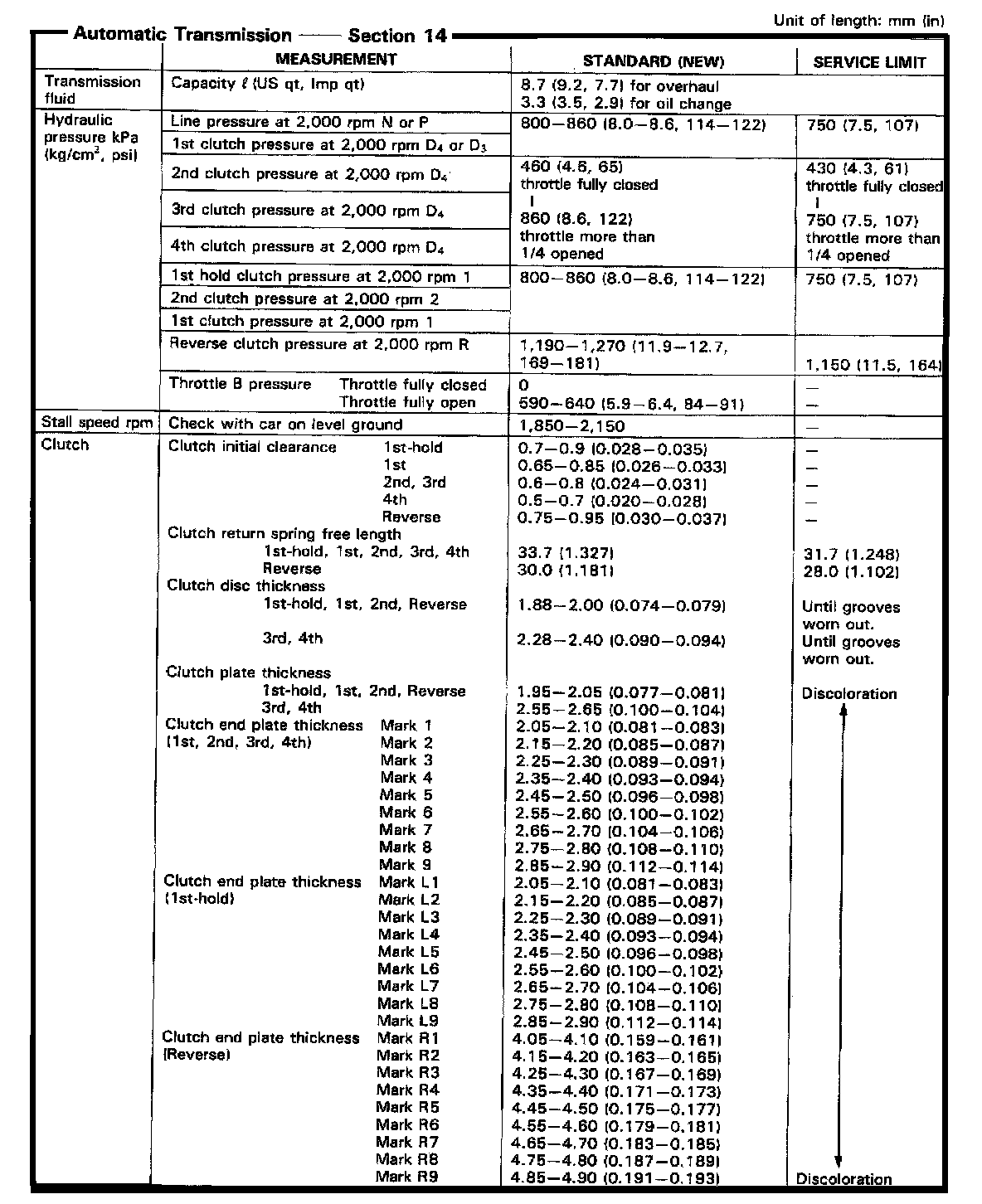

MPYA 4-spd A/T, Line Pressure, Stall Speed & Clutch Plate:

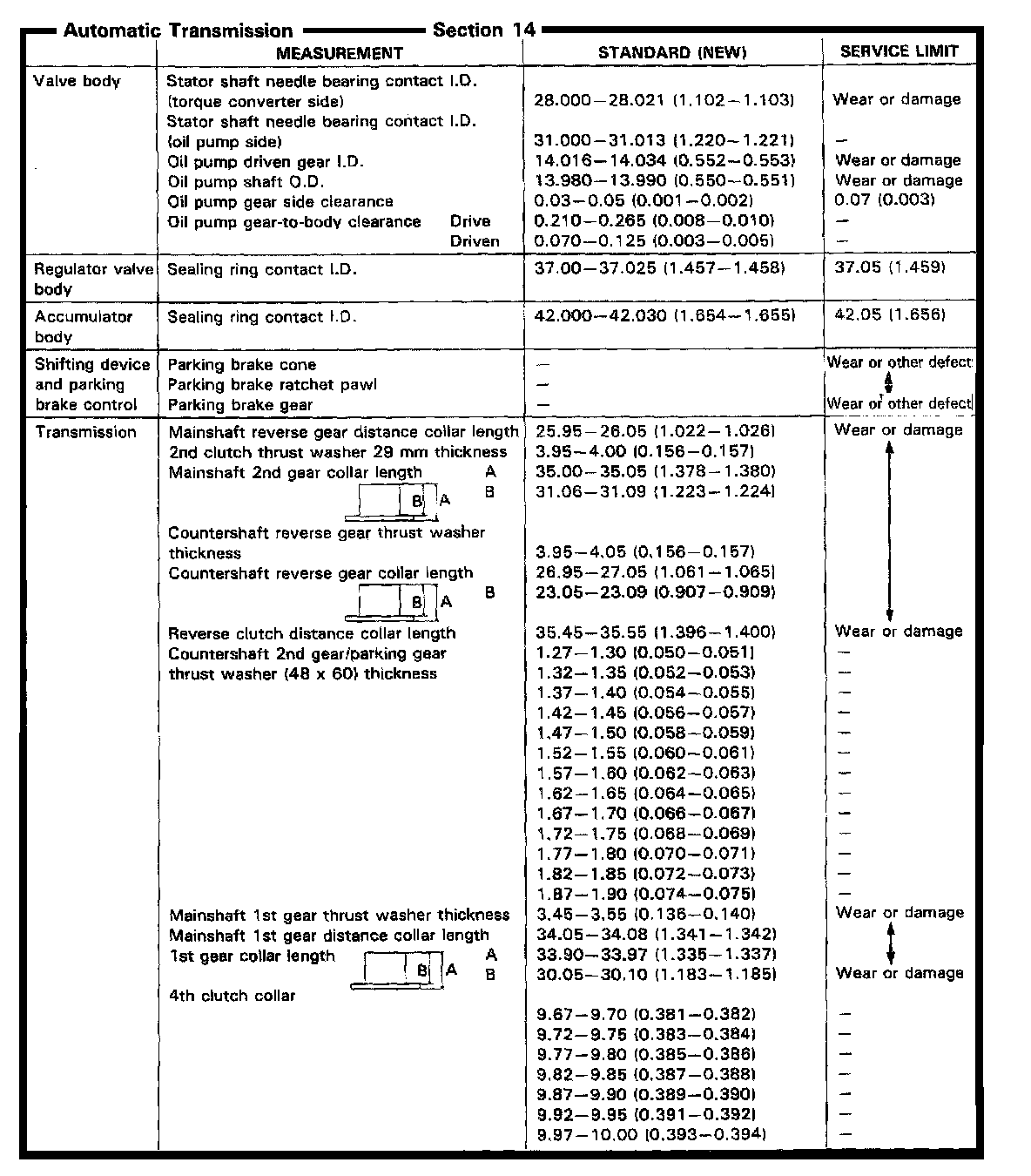

MPYA 4-spd A/T, Valve Body, Accumulator Body & Shaft Measurements:

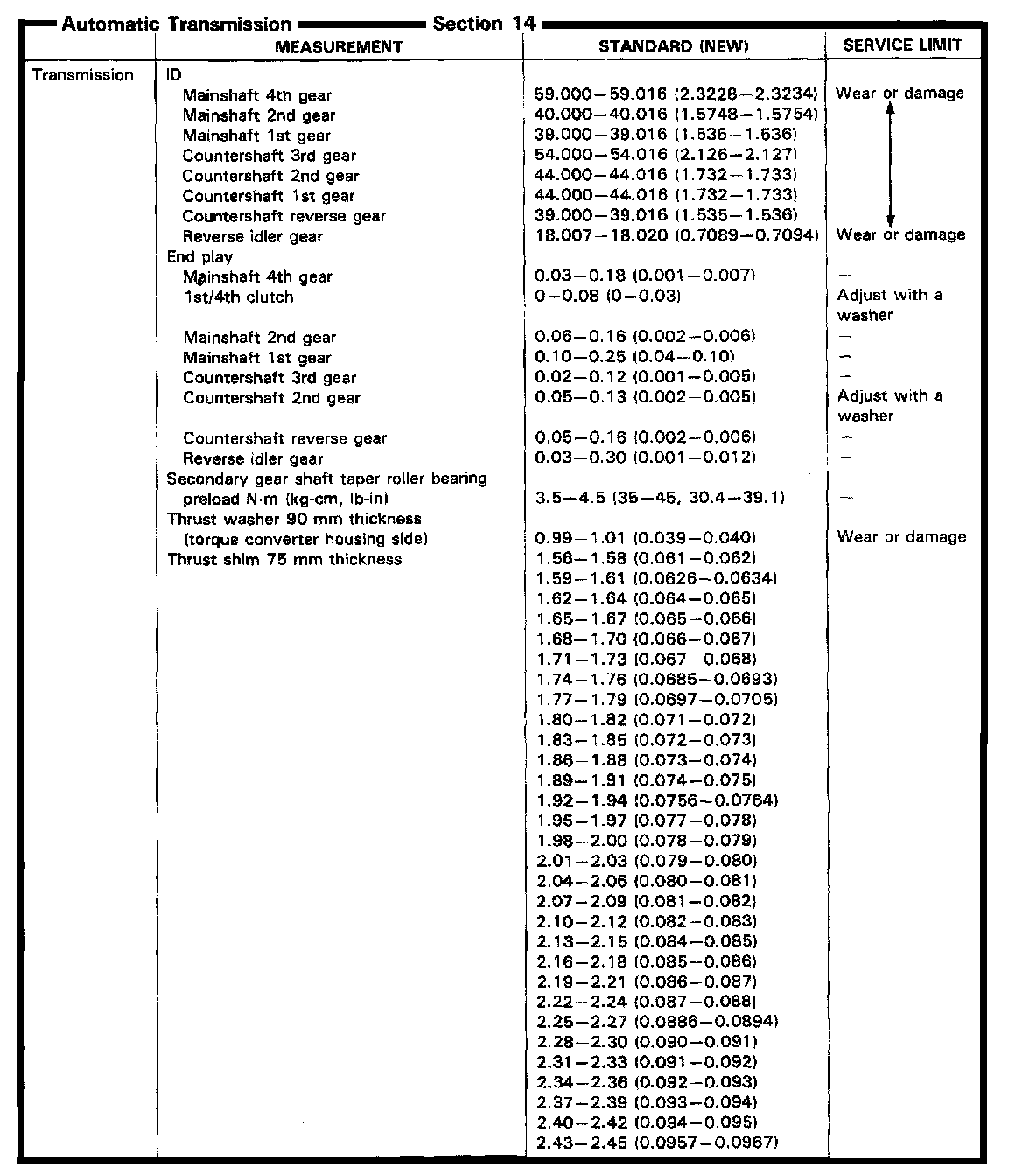

MPYA 4-spd A/T, Transmission Main/Countershaft Measurements:

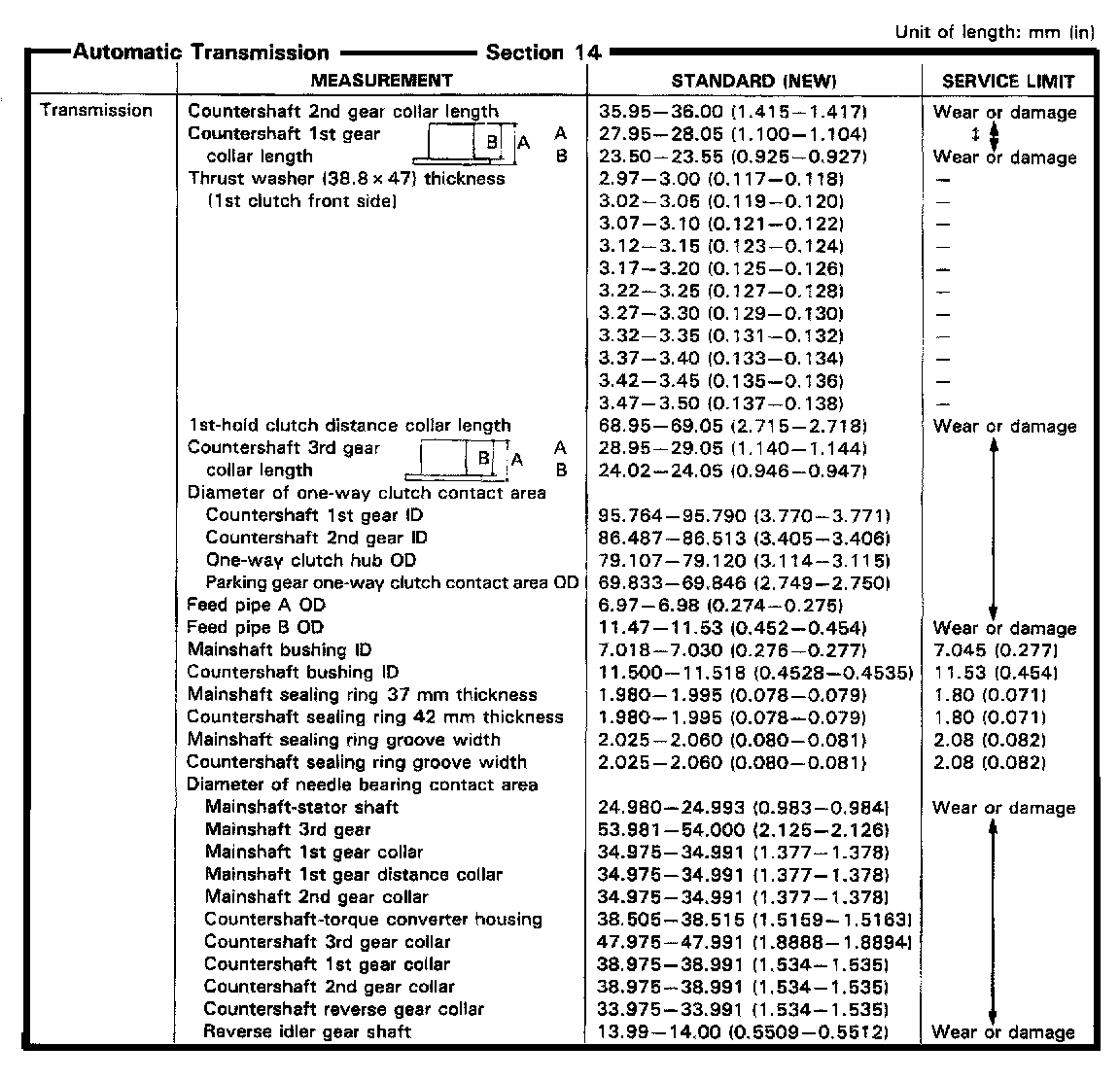

MPYA 4-spd A/T, Main/Countershaft Measurement Cont.:

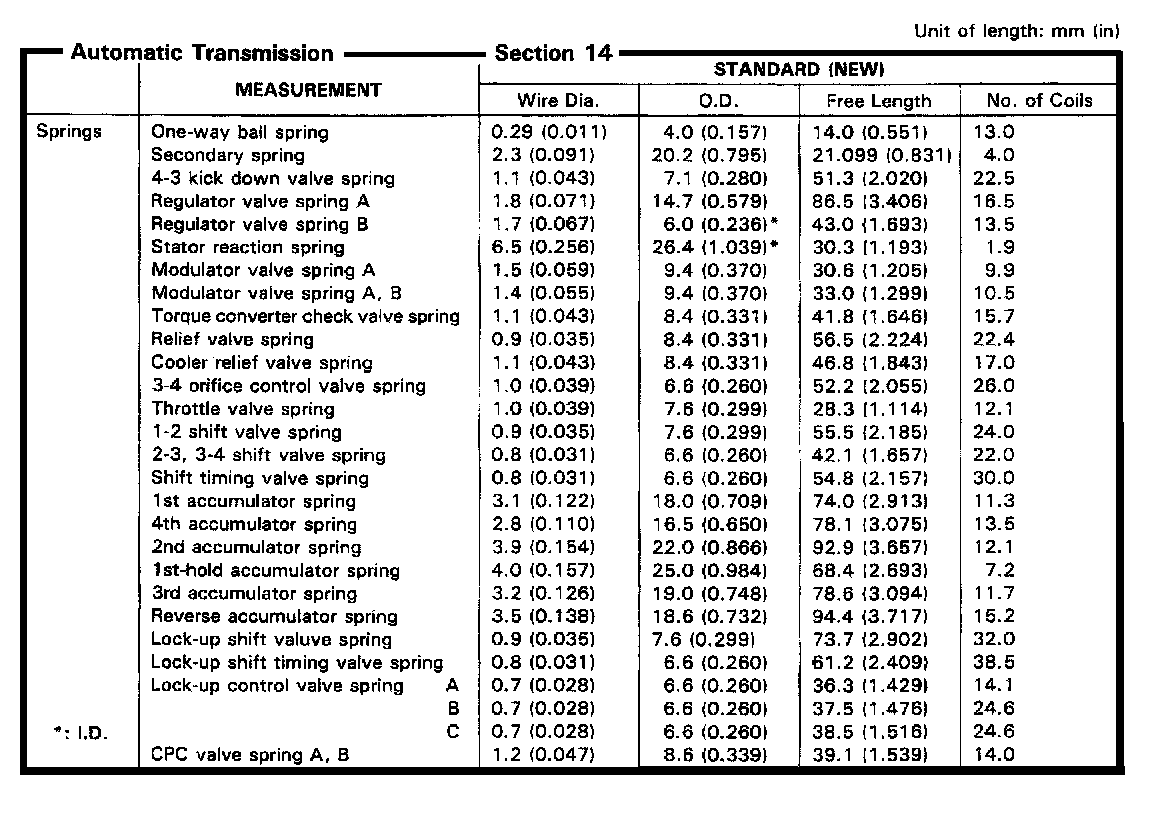

MPYA 4-spd A/T, Spring Measurements:

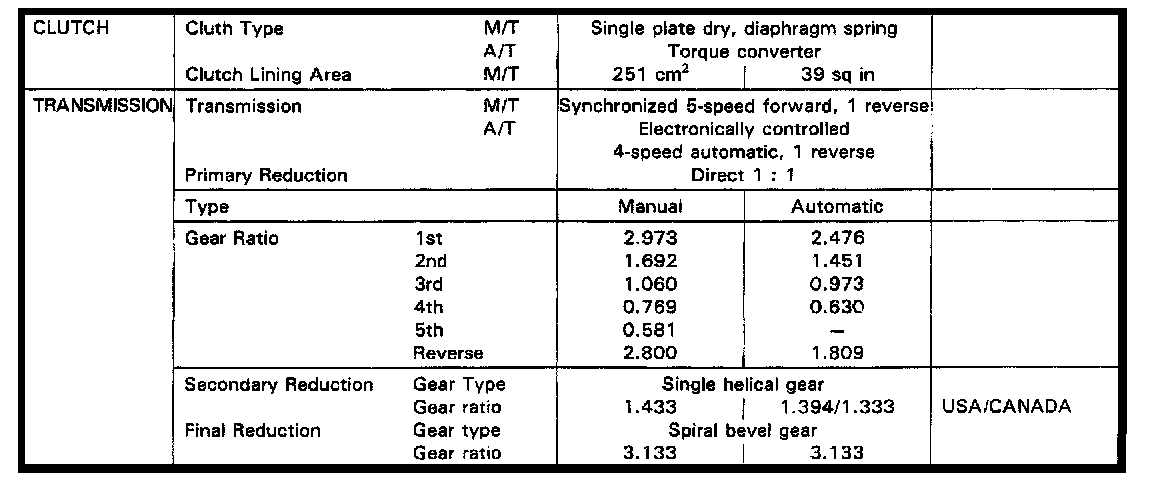

Manual/Automatic Transmission Gear Ratios:
