Pinout Values and Diagnostic Parameters

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2003 Acura Truck.

AI Repair Guides

PCM Inputs And Outputs At Connector A:

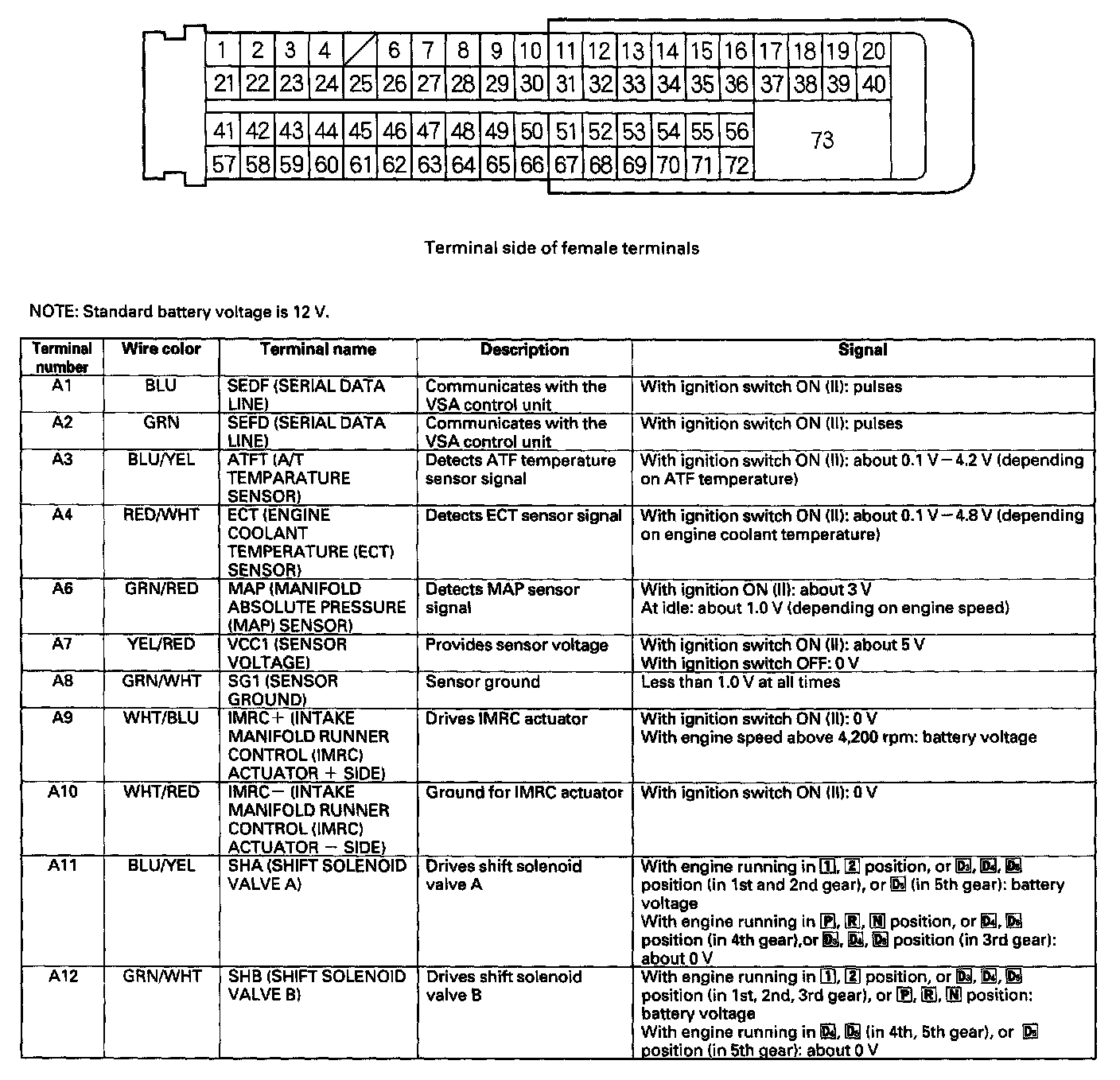

PCM Inputs And Outputs At Connector A (31P) Part 1:

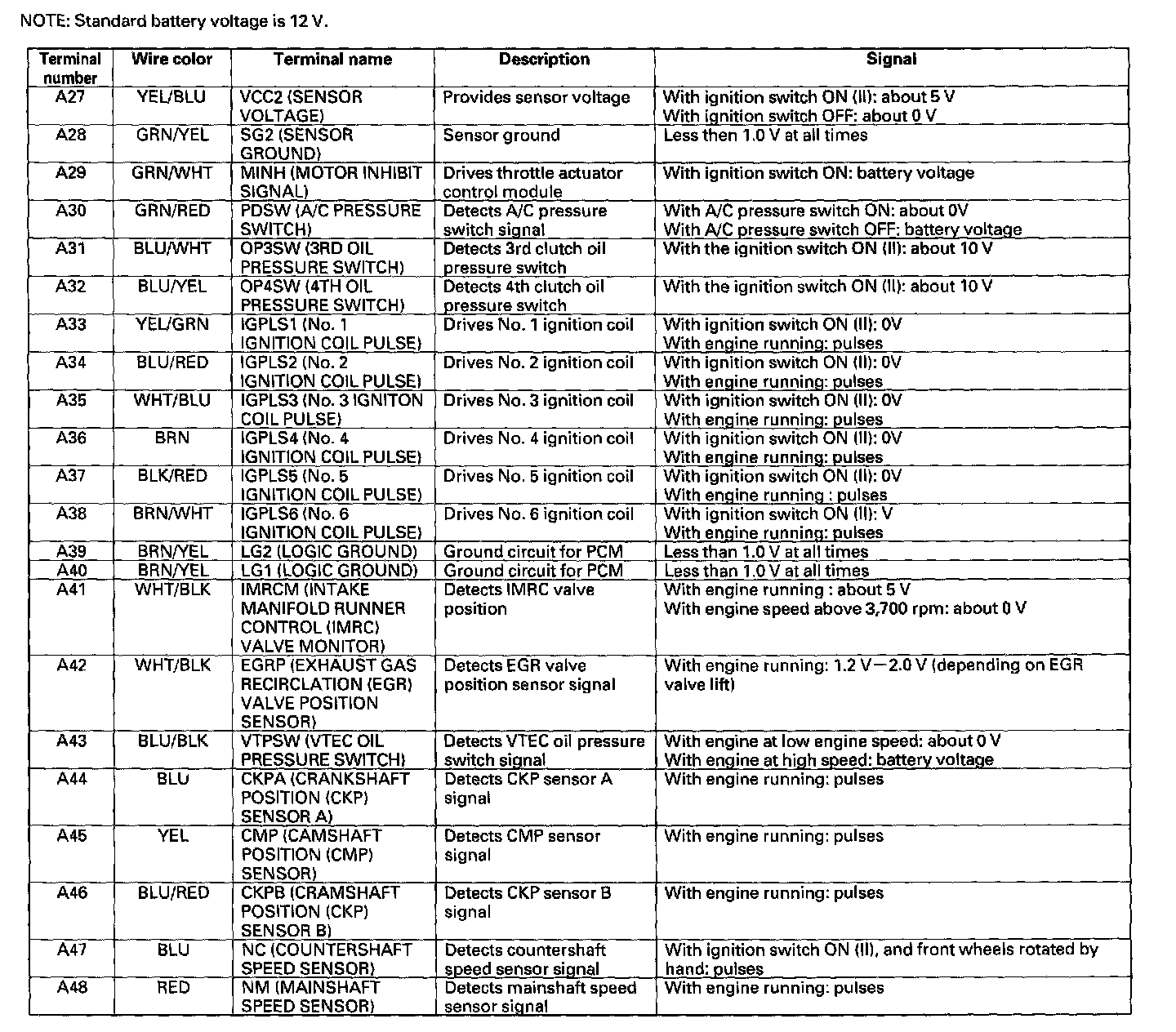

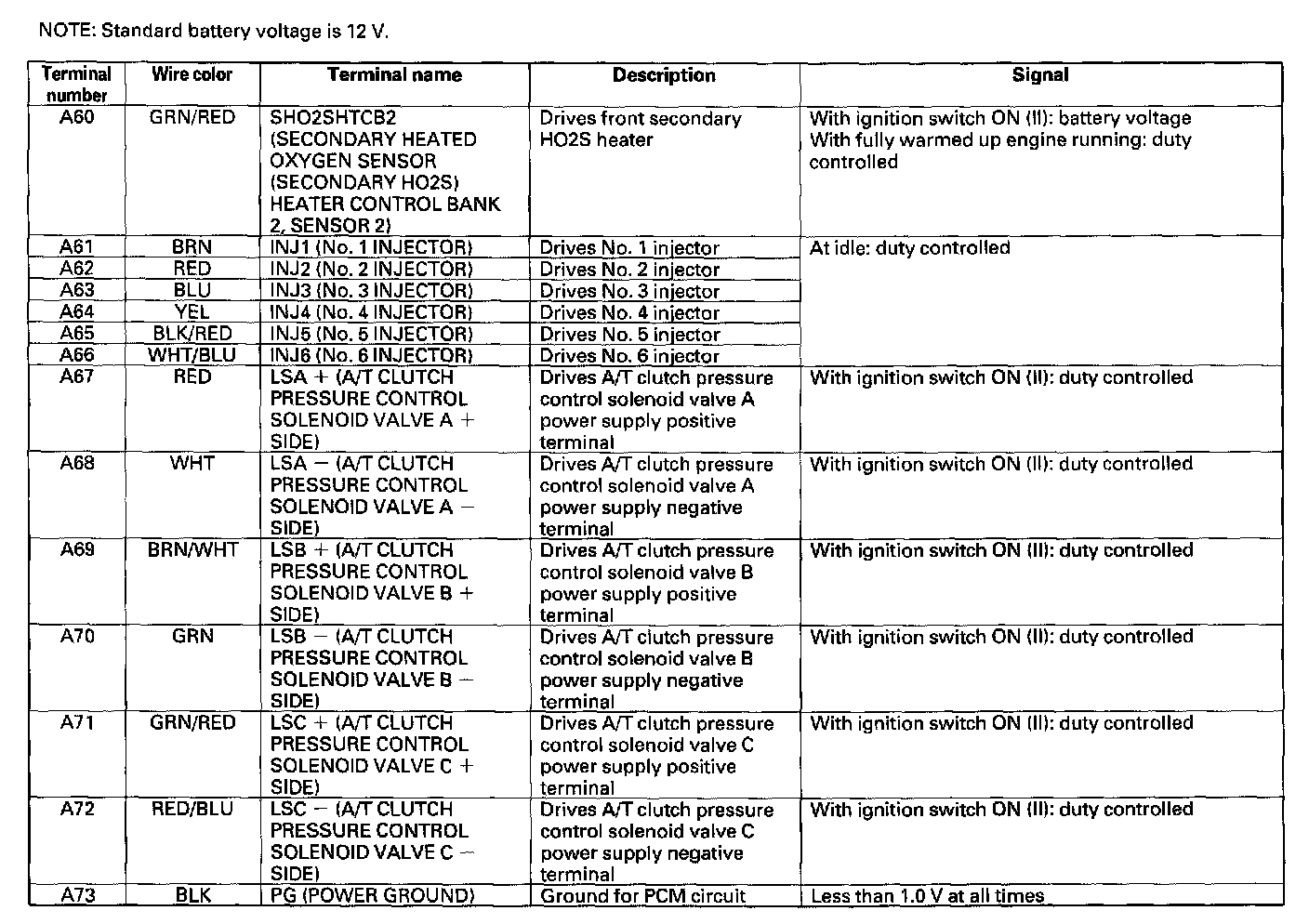

PCM Inputs And Outputs At Connector A (31P) Part 2:

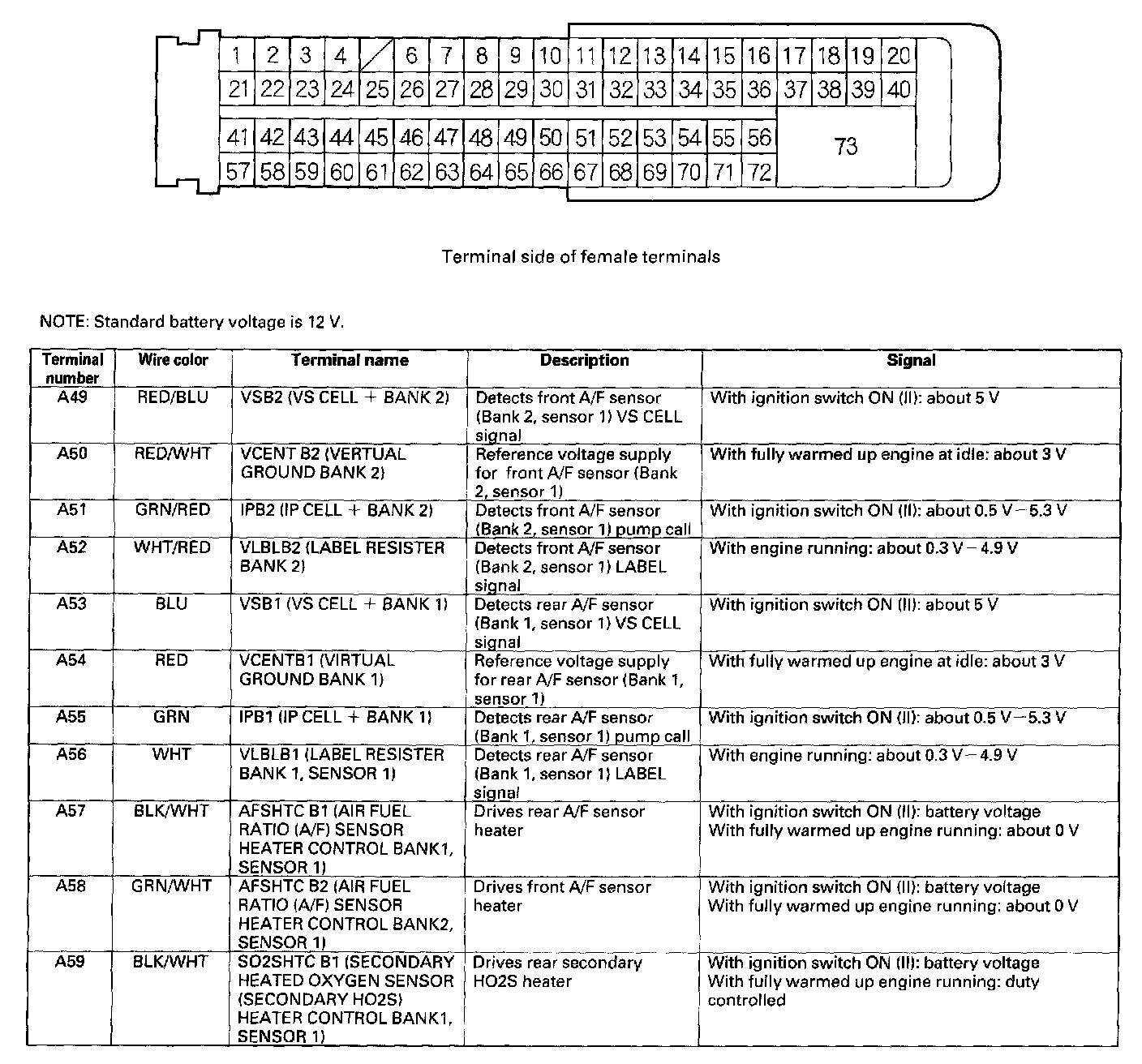

PCM Inputs And Outputs At Connector A Part 1:

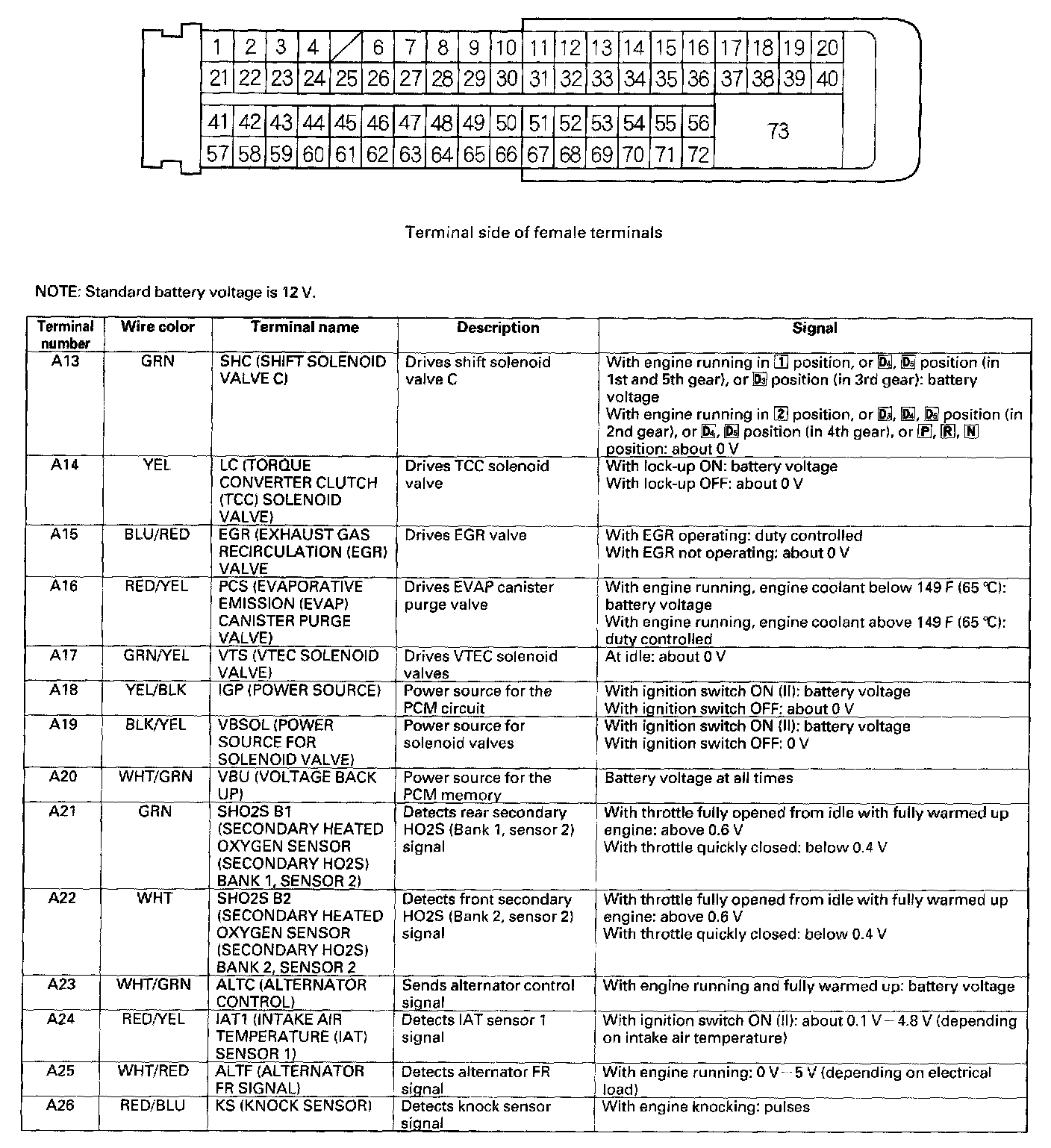

PCM Inputs And Outputs At Connector A Part2:

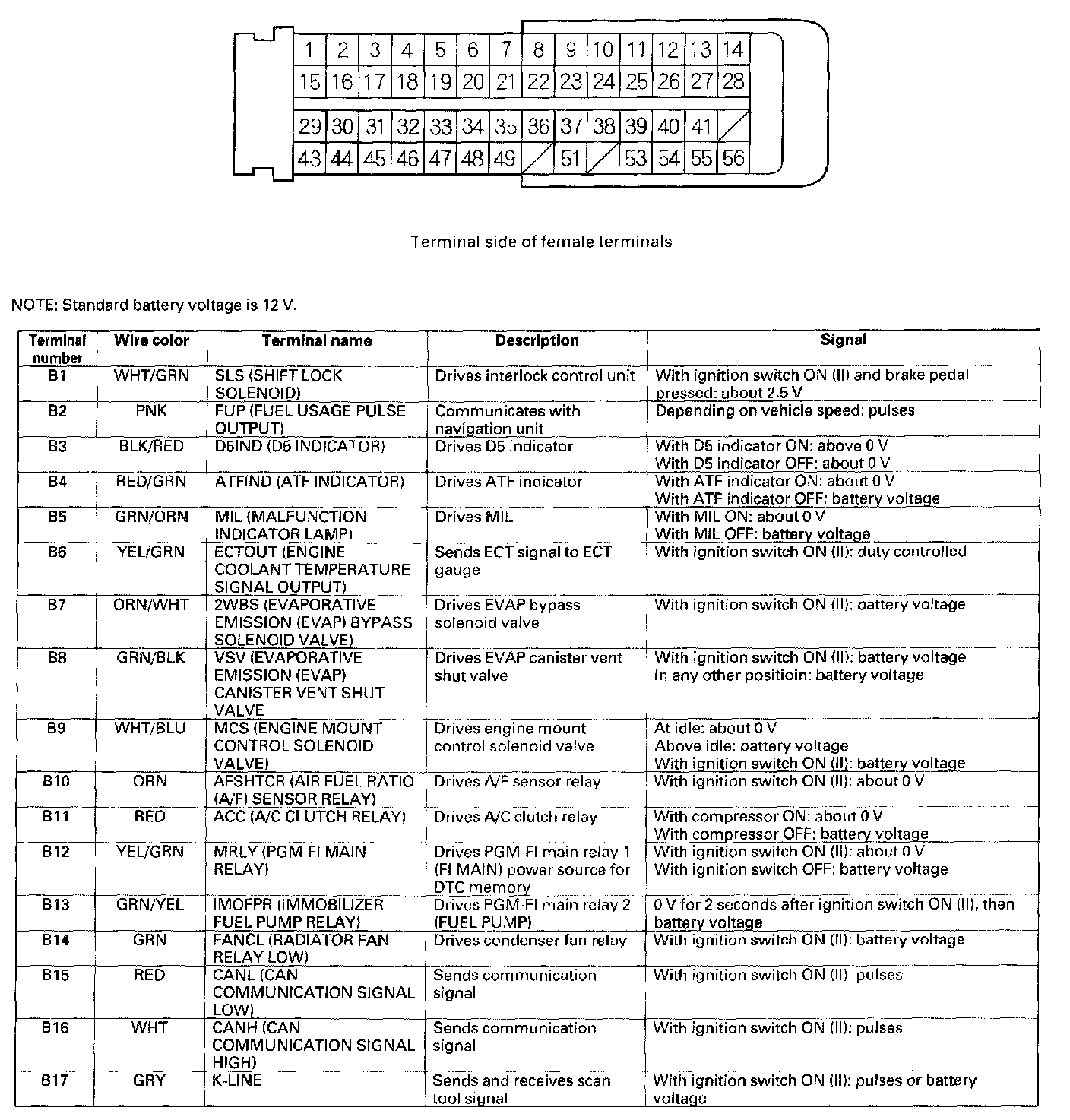

PCM Inputs And Outputs At Connector B Part 1:

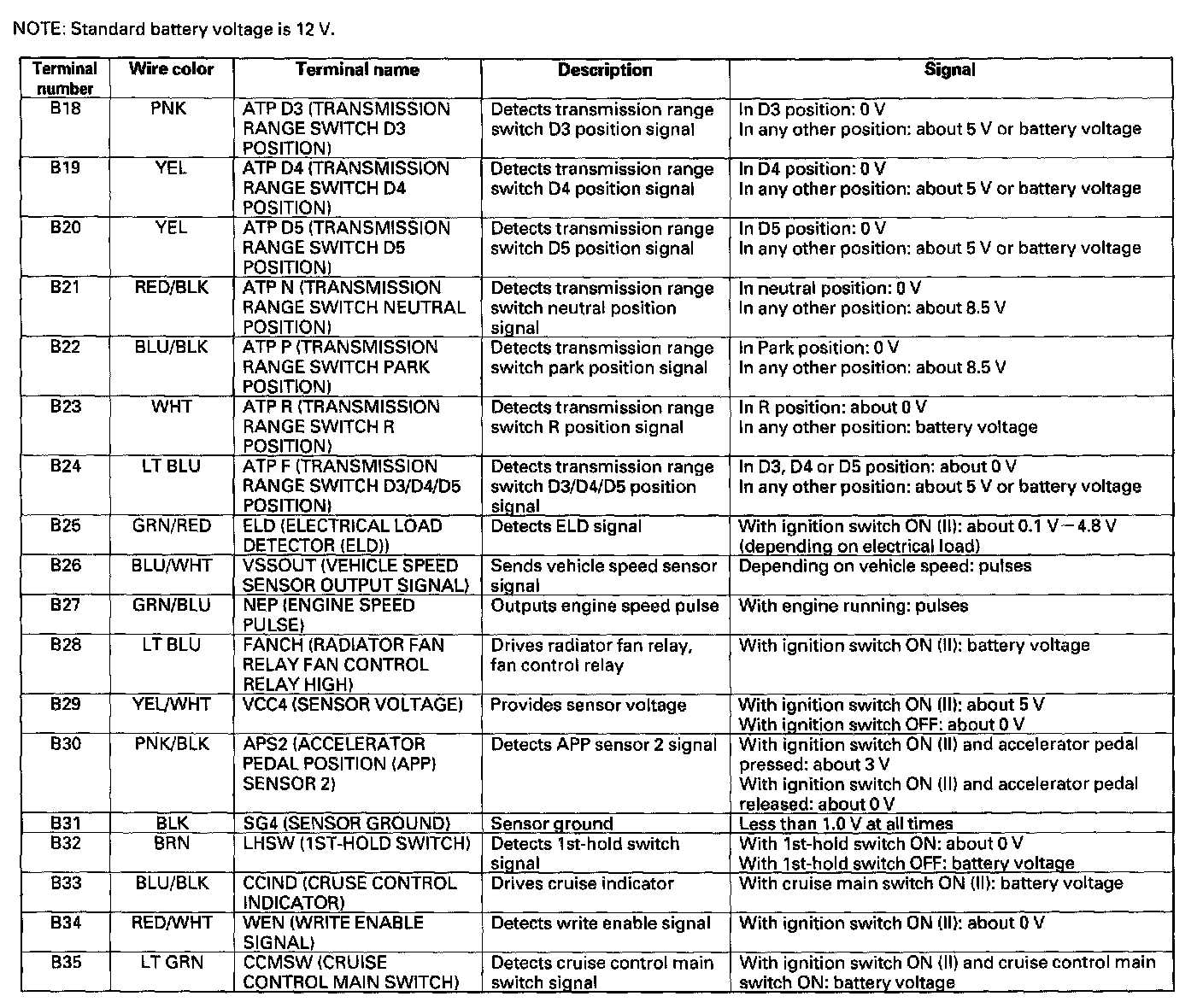

PCM Inputs And Outputs At Connector B Part 2:

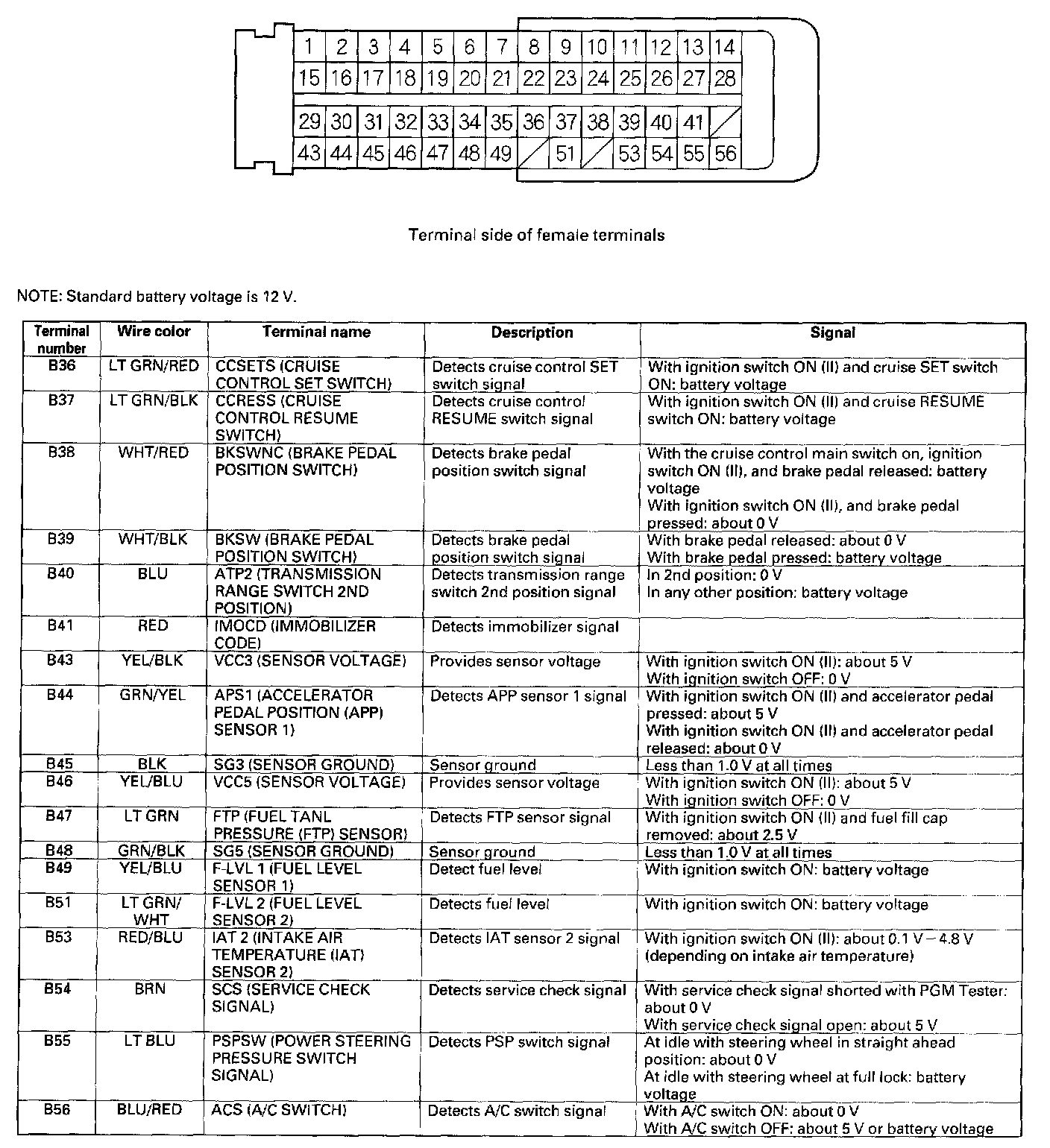

PCM Inputs And Outputs At Connector B:
