PCM Inputs and Outputs

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2003 Acura Truck.

AI Repair Guides

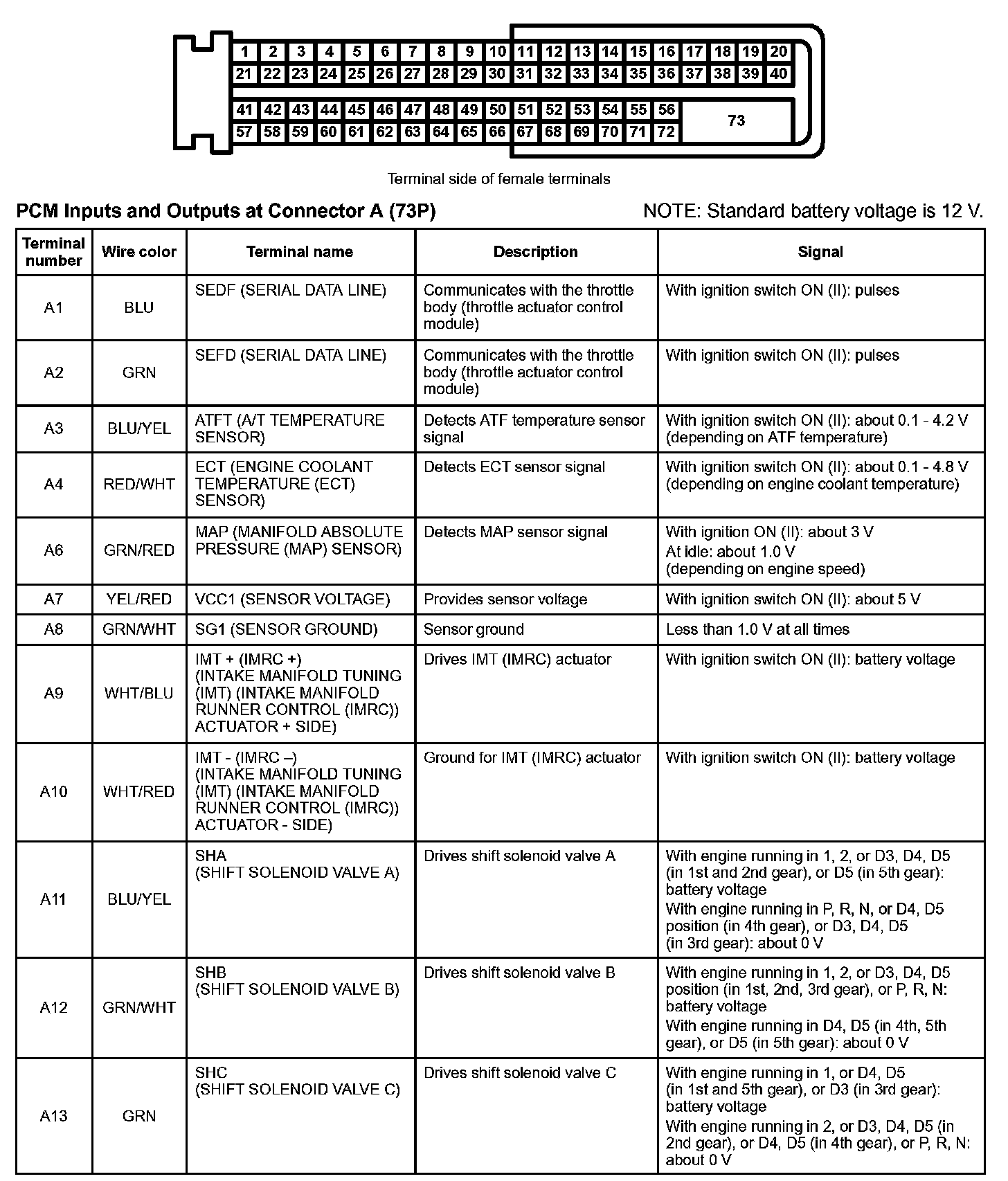

PCM Inputs And Outputs at Connector A (73P) Part 1:

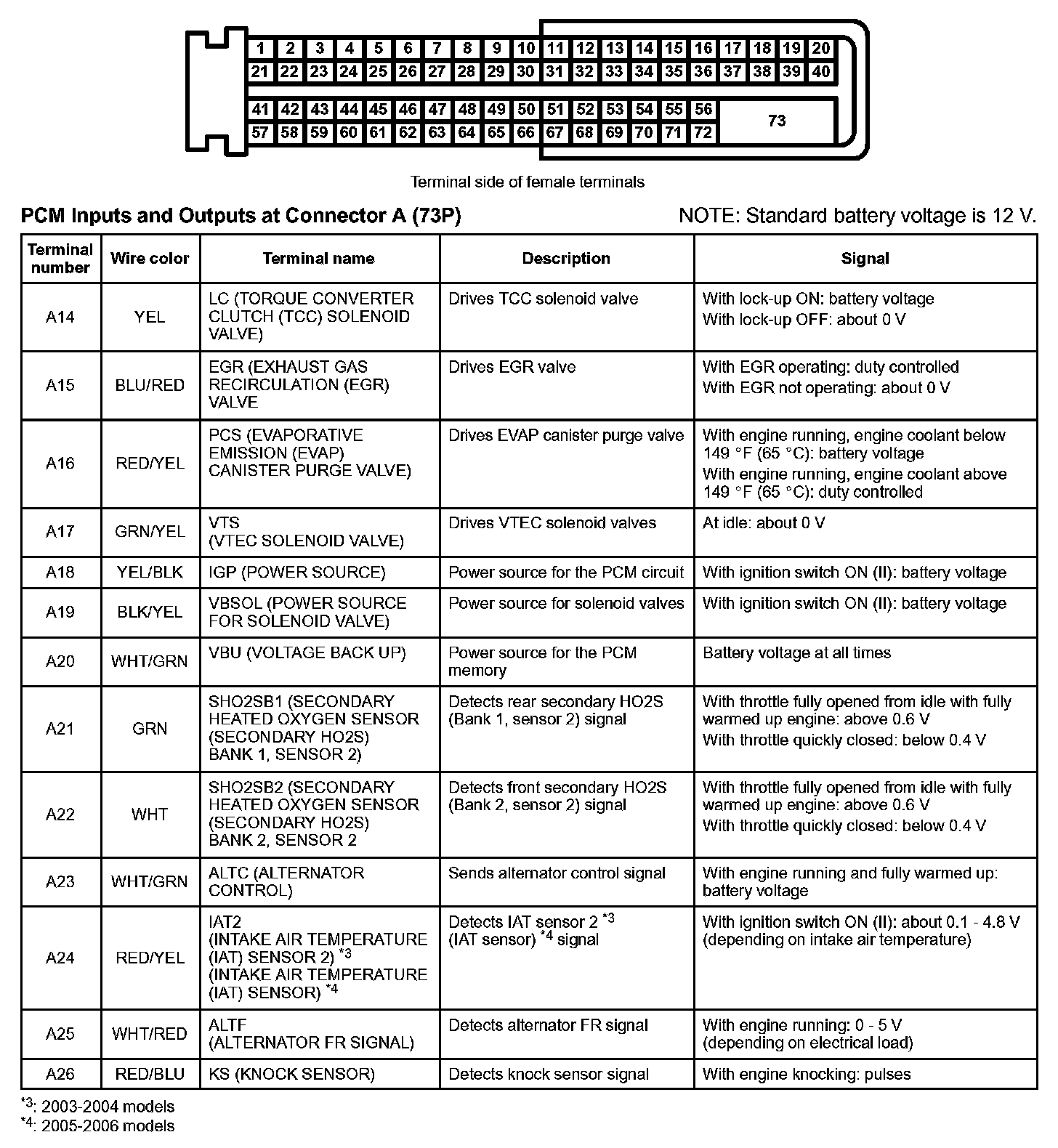

PCM Inputs And Outputs At Connector A (73P) Part 2:

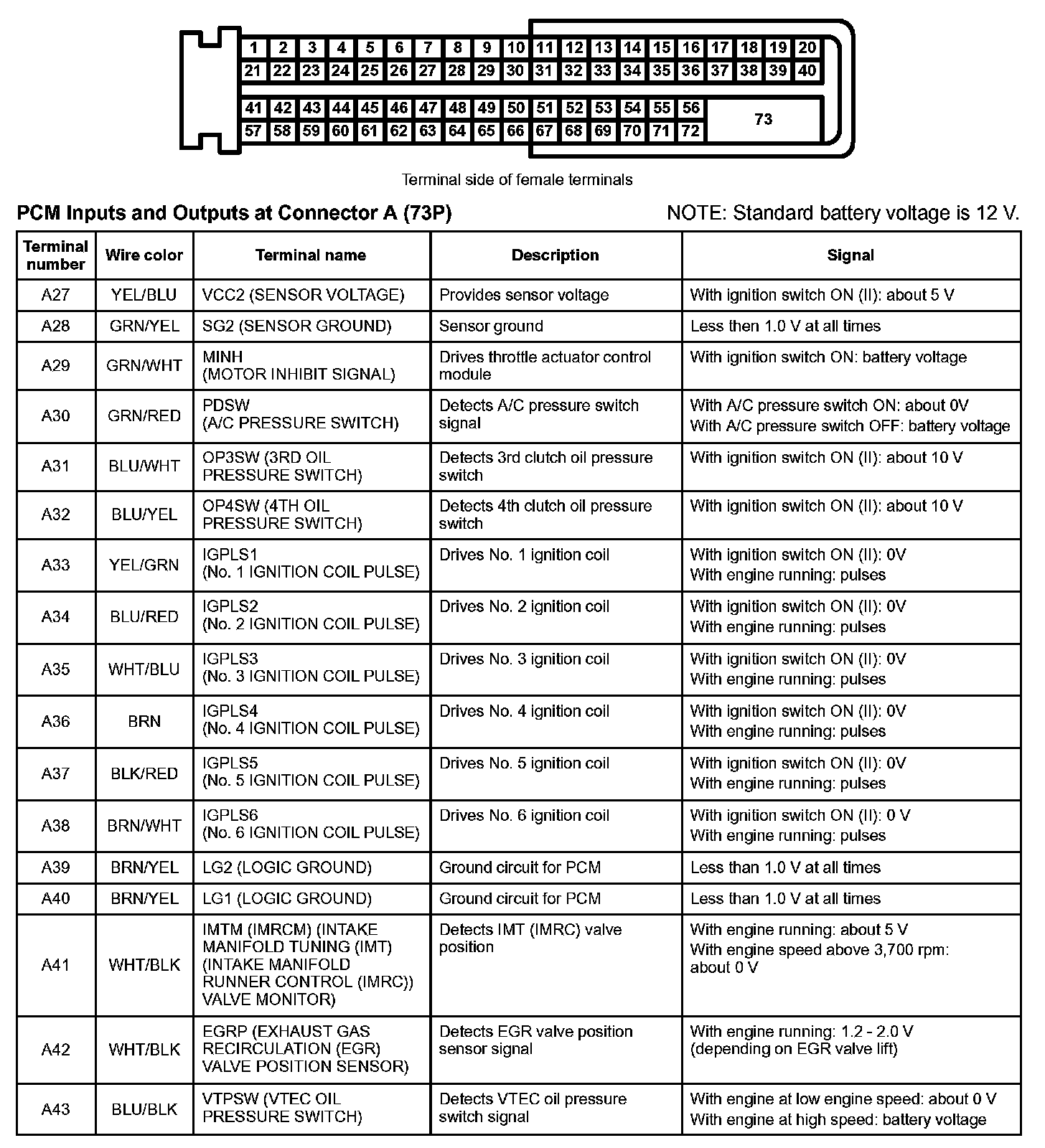

PCM Inputs And Outputs At Connector A (73P) Part 3:

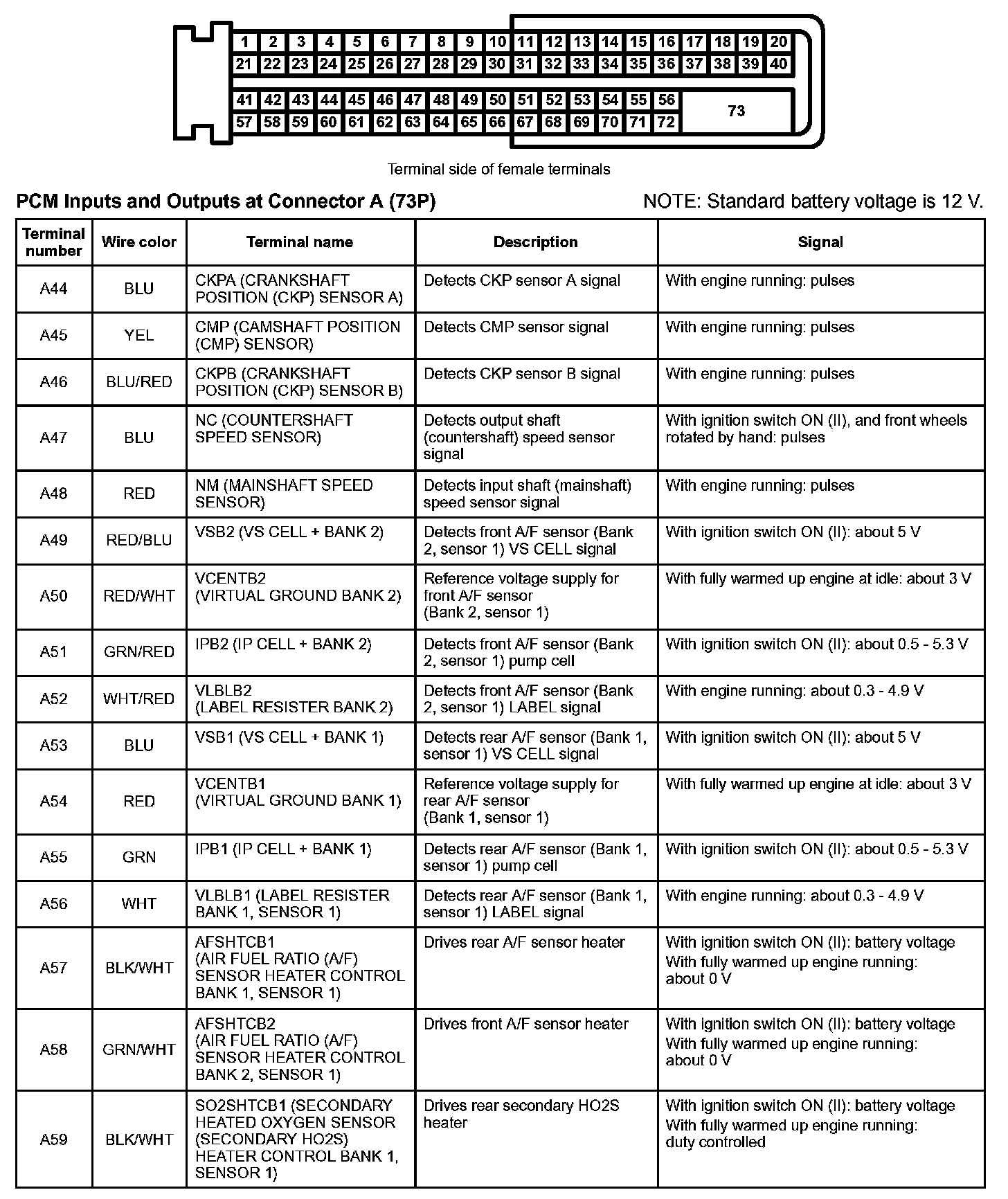

PCM Inputs And Outputs At Connector A (73P) Part 4:

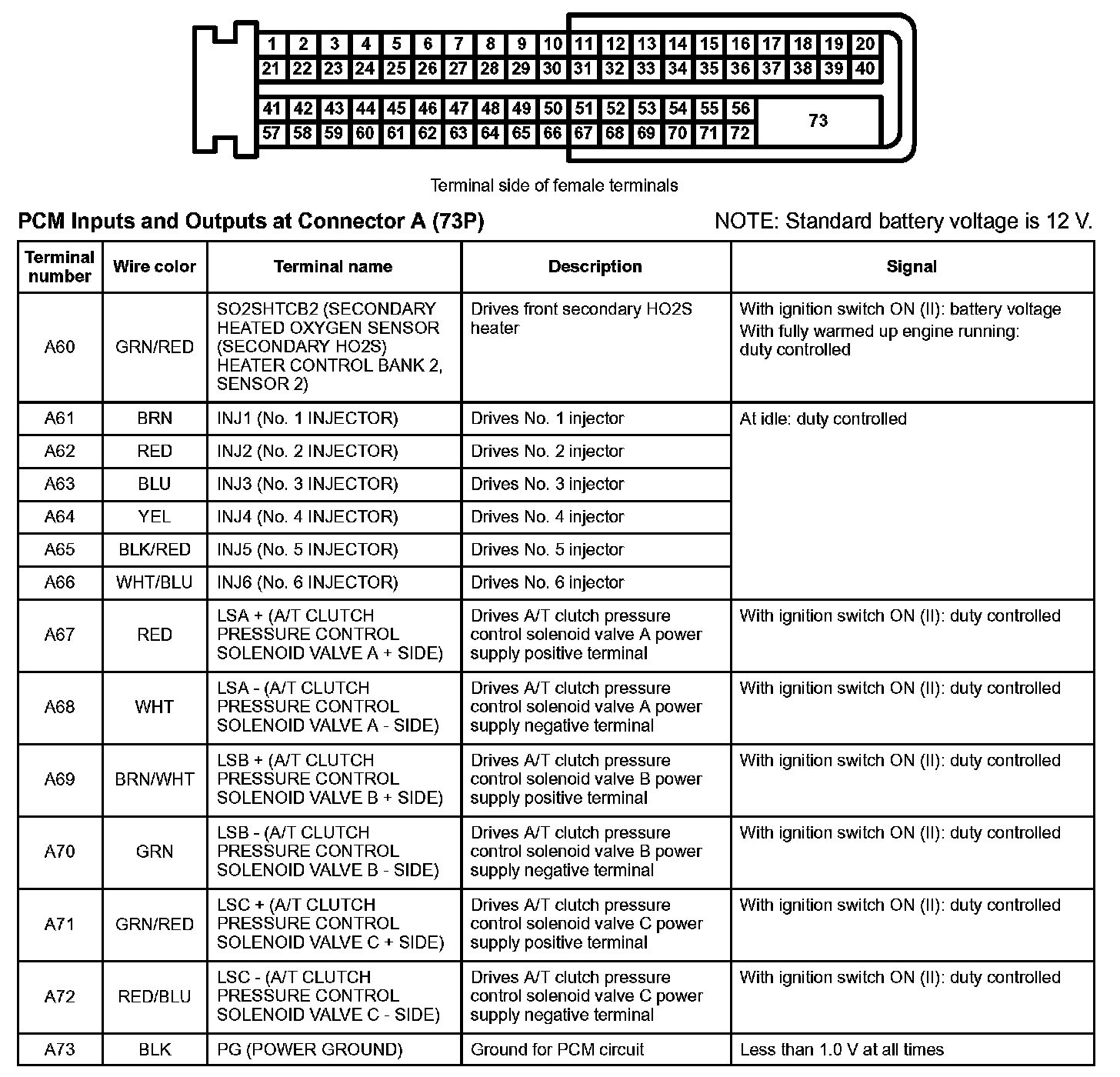

PCM Inputs And Outputs At Connector A (73P) Part 5:

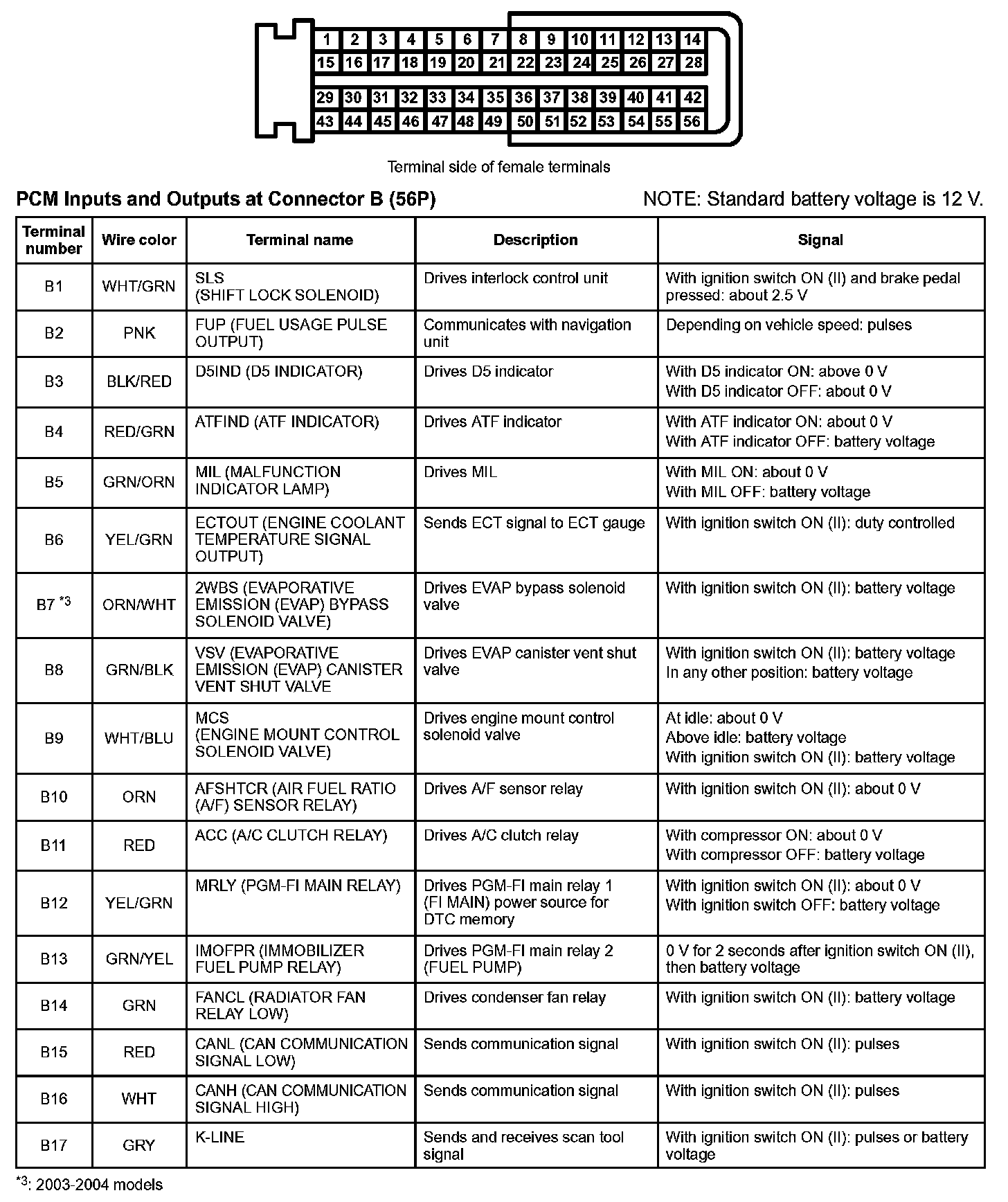

PCM Inputs And Outputs At Connector B (56P) Part 1:

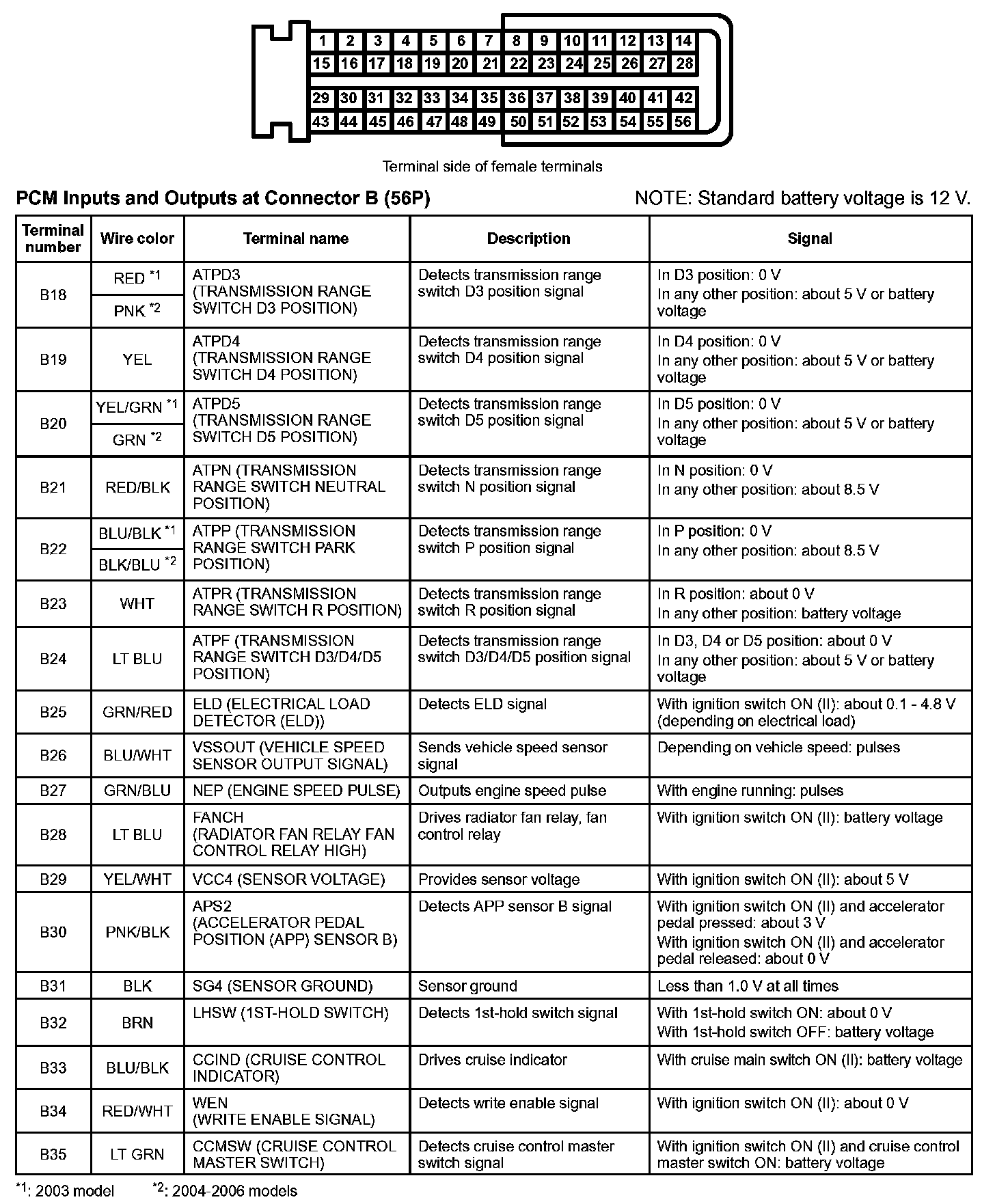

PCM Inputs And Outputs At Connector B (56P) Part 2:

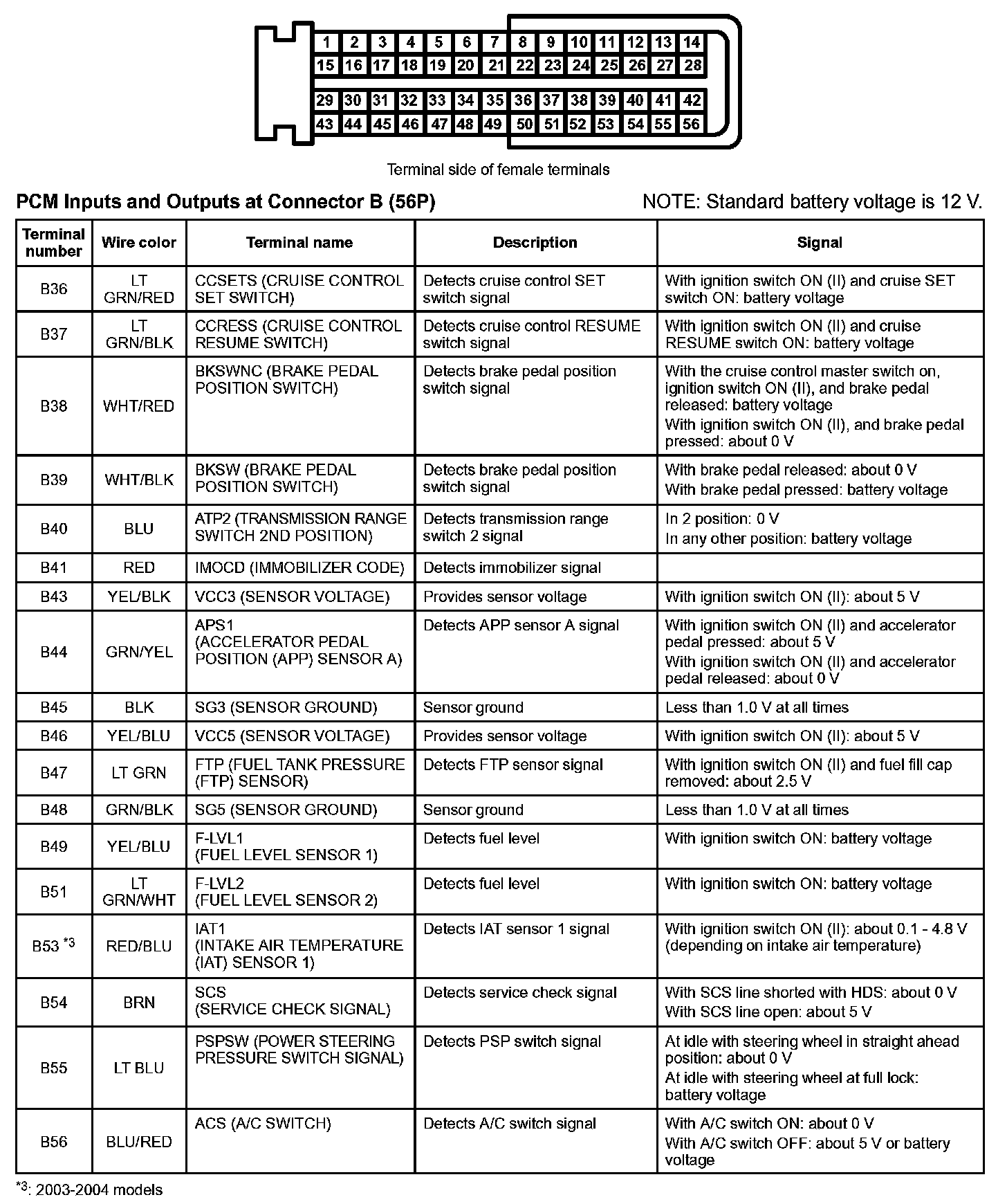

PCM Inputs And Outputs At Connector B (56P) Part 3:



← Back to Connector ViewsAll Makes
